NaI(Tl) Scintillation Crystal Radioactive / Nucleonics Level Gauge

Description
Name: NaI(Tl) Crystal Encapsulation: Aluminum Housing
Shape: Customized Available Standard Size: 1"x1",2"x2",3"x3",2L,4L,8L
Low Background Application: Applicable PMTs: Well Matched
Yearly Yeild: 10000pcs Warranty: One Year
High Light:

photomultiplier tubes nai tl crystal

,

PMTs nai tl crystal

,

radiation detection Scintillator Crystal

NaI(Tl) Scintillator Crystal Radioactive / Nucleonics Level Gauge



The emission maximum of NaI(Tl) crystal is well matched to the sensitivity curve of photomultiplier tubes (PMTs) with bialkali photocathodes.

NaI(Tl) is susceptible to radiation damage, i.e. prolonged exposure to intense radiation degrades the scintillation performance. The crystal should not be exposed to ultraviolet radiation from fluorescent lamps or sunlight.

Scintillation crystals of NaI(Tl) are routinely grown with a potassium content of less than 0.5 ppm, and are appropriate for low background applications. NaI(Tl) crystals are widely used for radiation detection: in nuclear medicine, for environmental monitoring, in nuclear physics, aerial survey, well logging and in many other applications.



Properties:



Density(g/cm3) 3.67
Melting Point (K) 924
Thermal expansion coefficient (K-1) 47.4 x 10-6
Hardness (Mho) 2
Hygroscopic Yes
Wavelength of Emission Maximum (nm) 420
Refractive Index at Emission Maximum 1.85
Primary Decay Time(ns) 250
Temperature Coefficient of Light Yield 0.3% K-¹
Light Yield (photons/keV) 38



Advantage:

Cost effective

Larger size available

High light output/ detection efficiency

Single /poly/forged crystal available

Wavelength well matched PMT read out



Application:

Nuclear medicine

Environmental measurements

Geophysics

High-energy physics

Radiation detection



%PHR Sample:



NaI(Tl)  Scintillation Crystal Radioactive / Nucleonics Level Gauge 0

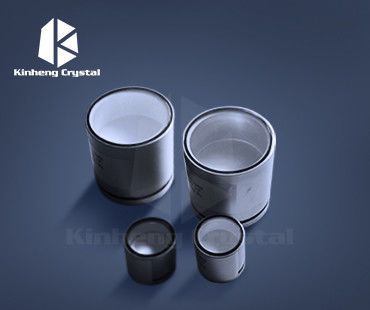

Product shots:



NaI(Tl)  Scintillation Crystal Radioactive / Nucleonics Level Gauge 1

NaI(Tl)  Scintillation Crystal Radioactive / Nucleonics Level Gauge 2

NaI(Tl)  Scintillation Crystal Radioactive / Nucleonics Level Gauge 3



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
