Product Details:
|
| Product Name: | GAGG Scintillator Crystal | Timing Resolution: | 169ps |
|---|---|---|---|
| Center Wavelength: | 530 | Crystal System: | Cubic |
| Strength: | Fast Decay Time，High Brightness | Reflector: | BaSO4 |
| Growth Method: | Czochralski | Effective Atomic Number: | 54 |
| GAGG Ingot: | Aailable | ||
| High Light: | 530 Nm Scintillation Crystal Detector,Scintillation Detector Crystal Emission Spectrum,High Density Single Crystal Scintillator |
||
530 nm emission spectrum peak wavelength 6.6 g/cm³ high density GAGG Scintillation Crystal
The cerium doped Gadolinium Aluminum Gallium Garnet crystals, (Ce:Gd3Al2Ga3O12, Ce:GAGG) is a relatively new single crystal scintillator with several properties that make it suitable for applications including gamma spectroscopy, alpha particle detection, and nuclear imaging.
GAGG(Gadolinium Gallium Aluminum Garnet) is a new generation of high-end CT and security inspection equipment detection material, which has the advantages of high energy resolution, high light output, no background radiation and no deliquescence.We have achieved stable and large-scale production of GAGG materials. Its product quality is obviously better than GOS, which is commonly used in CT equipment, and has a significant competitive advantage in cost.
Properties:
| Type | GAGG-HL | GAGG Balance | GAGG-FD |
| Crystal System | Cubic | Cubic | Cubic |
| Density(g/cm3) | 6.6 | 6.6 | 6.6 |
| Light Yield (photons/Kev) | 60 | 50 | 30 |
| Decay Time(ns) | ≤150 | ≤90 | ≤48 |
| Center Wavelength | 530 | 530 | 530 |
Advantage:
1. Good stopping power
2. High brightness
3. Low afterglow
4. Fast decay time
Application:
Gamma camera
PET, PEM, SPECT, CT
X-ray & Gamma ray detection
High energy container inspection

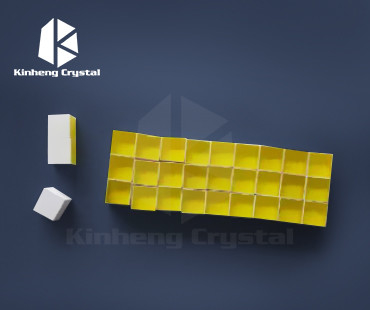

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2. Q: Where is your main market?
A: Europe, America, Asia.
