Non Deliquescent GAGG Scintillator Crystal High Light Output

Non Deliquescent GAGG Scintillator Crystal High Light Output
Non Deliquescent GAGG Scintillator Crystal High Light Output

Large Image :  Non Deliquescent GAGG Scintillator Crystal High Light Output

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Non Deliquescent GAGG Scintillator Crystal High Light Output

Description
Material: GAGG Scintillator Type: HL/Balance/FD
Decay Time: 48ns/90ns/150ns Ingot Dimension: Dia60x200mm And Dia50x150mm
Application: Gamma Camera, High Energy Container Checking Radiation Length (cm): TBA
Solubility (g/100gH2O): N/A Cleavage: No
High Light:

Non Deliquescent GAGG Scintillator crystal

,

High Light Output GAGG Scintillator

,

Scintillation Crystal Material

Non-deliquescent Fair energy resolution High light output GAGG Scintillator crystal



Recently developed Gd3Al5-xGaxO12:Ce (GAGG:Ce) with the light yield up to 50000 phot/MeV are the brightest known oxide scintillators.These materials can be used for high energy gamma and charged particle detection, positron emission tomography matrices, high spatial resolution imaging screens for x-rays, gamma and beta.



Properties:



Type GAGG-HL GAGG Balance GAGG-FD
Crystal System Cubic Cubic Cubic
Density(g/cm3) 6.6 6.6 6.6
Light Yield (photons/Kev) 60 50 30
Decay Time(ns) ≤150 ≤90 ≤48
Center Wavelength 530 530 530





Advantage:

1. Good stopping power

2. High brightness

3. Low afterglow

4. Fast decay time



Application:

Gamma camera

PET, PEM, SPECT, CT

X-ray & Gamma ray detection

High energy container inspection

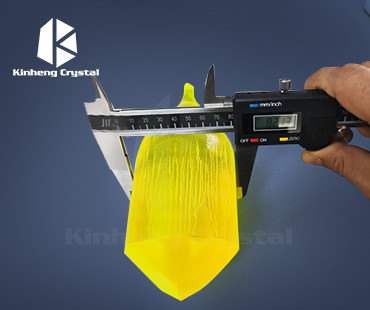

Product shots:



 Non Deliquescent GAGG Scintillator Crystal High Light Output 0

Non Deliquescent GAGG Scintillator Crystal High Light Output 1



FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q: Where is your main market?

A: Europe, America, Asia.
