Single Photon Emission GAGG Scintillation Crystal For Computed Tomography

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Single Photon Emission GAGG Scintillation Crystal For Computed Tomography

Single Photon Emission GAGG Scintillation Crystal For Computed Tomography
Single Photon Emission GAGG Scintillation Crystal For Computed Tomography

Large Image :  Single Photon Emission GAGG Scintillation Crystal For Computed Tomography

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Single Photon Emission GAGG Scintillation Crystal For Computed Tomography

Description
Product Name: GAGG Scintillator Crystal Timing Resolution: 169ps
Center Wavelength: 530 Crystal System: Cubic
Density(g/cm3): 6.6 Advantage: High Light Output,low Afterglow,good Stopping Power
Reflector: BaSO4 Light Yield (Photons/MeV): >50000
Hardness (Mohs): 8
High Light:

Single Photon GAGG Scintillator

,

Computed Tomography Single Crystal Scintillator

,

Single Scintillation Detector Crystal

Computed tomography/Positron emission tomography/Single-photon emission computed tomography GAGG scintillation crystal



GAGG:Ce (Cerium-doped Gadolinium Aluminium Gallium Garnet) is a promising new scintillator crystal. A wide array of interesting features, such as high light output, fast decay times, almost non-existent intrinsic background and robustness, make GAGG:Ce an interesting candidate as a component of new space-based gamma-ray detectors. In particular, GAGG:Ce is characterized by unusually high and long-lasting delayed luminescence. This afterglow emission can be stimulated by the interactions between the scintillator and the particles of the near-Earth radiation environment. By contributing to the noise, it will impact the detector performance to some degree.



Properties:



Type GAGG-HL GAGG Balance GAGG-FD
Crystal System Cubic Cubic Cubic
Density(g/cm3) 6.6 6.6 6.6
Light Yield (photons/Kev) 60 50 30
Decay Time(ns) ≤150 ≤90 ≤48
Center Wavelength 530 530 530



Advantage:

1. Good stopping power

2. High brightness

3. Low afterglow

4. Fast decay time



Application:

Gamma camera

PET, PEM, SPECT, CT

X-ray & Gamma ray detection

High energy container inspection

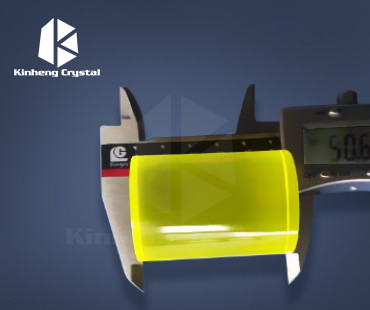

Product shots:



 Single Photon Emission GAGG Scintillation Crystal For Computed Tomography 0

Single Photon Emission GAGG Scintillation Crystal For Computed Tomography 1



FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2. Q: Where is your main market?

A: Europe, America, Asia.
