Product Details:
|
| Structure: | Tetragonal | Point Group: | 4 |
|---|---|---|---|
| Space Group: | I41/a | Lattice Constant: | A=0.5435, C=1.211 |
| Growth Direction: | <100> | Range Of Transmission: | 0.42 – 5.55 Mm |
| Refractive Index: | 2.262 | Wavelength: | 0.633mm |
| Acoustic Velocity (105 Cm/S): | 3.63 | ||
| High Light: | PbMoO4 PMO Acousto Optic Crystal,5.55 mm PbMoO4 crystal,0.633mm Acousto Optic Crystal |
||

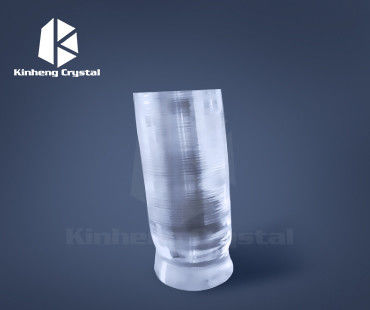

Low sound velocity wide light transmission range PbMoO4 PMO Acousto optic crystal
The application of PbMoO4 (lead molybdate/LMO) crystal as acoustic–optic modulators has been known for a long time.
A powder synthesis of PbMoO4 from ancient lead (Pb) and deeply purified commercial MoO3 powders was performed using a wet chemistry technique to achieve the low radioactivity scintillator for neutrinoless double beta decay search in 100Mo. The synthesized powders were used to grow single crystals of PbMoO4 by a Czochralski technique in Ar environment.
Properties:
| structure | Tetragonal |
| Point group | 4 |
| Space group | I41/a |
| Lattice constant | a=0.5435, C=1.211 |
| Melting point | 1065 °C |
| Density | 6.95 g/cm3 |
| Hardness | 3 |
| Elastic-optical coefficient | P11=0.24 P13=0.255 |
Advantage:
Elastic-optical coefficient
Large refractive index
Low sound velocity
Low density
Wide light transmission range
Small attenuation
Product shots:
