Cadmium Tungstate Scintillator Array

Cadmium Tungstate Scintillator Array
Cadmium Tungstate Scintillator Array Cadmium Tungstate Scintillator Array

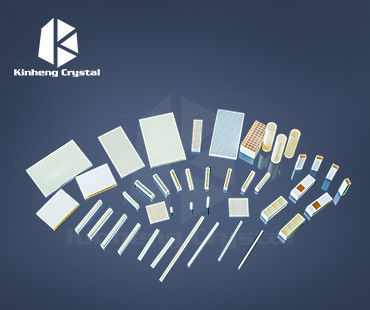

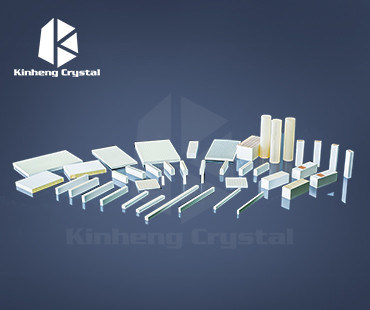

Large Image :  Cadmium Tungstate Scintillator Array

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Cadmium Tungstate Scintillator Array

Description
Product Material: Cadmium Tungstate Crystal Atomic Number (Effective): 74
Application: High-energy X-ray Inspection Equipment,CT Scanner Equipment Advantage: High X-ray Stopping Power ,low Afterglow
Array Type: Liner And 2D Afterglow@30ms: 0.1-0.2%
Minimal Pixel Size: Liner:0.4mm ;2D:1mm Hygroscopic: No
High Light:

CWO cadmium tungstate scintillator

,

14000nm CWO Matrix

,

Liner 2D cadmium tungstate scintillator

High-energy X-ray inspection equipment CWO Matrix CWO scintillatior Array



CWO array with high X-ray stopping power is used especially in high-energy X-ray inspection equipment.

It is suitable for a CT scanner equipment due to its low afterglow property.

We can prepare various types of arrays.Large area 2D array can be used in the airport checked baggage inspection equipment (CT) for security application.



Why Choose Kinheng:

1.Minimal pixel dimension available

2.Reduced optical crosstalk

3.Good uniformity between pixel to pixel/ Array to array

4.TiO2/BaSO4/ESR/E60 reflectors available

5.Pixel Gap: 0.08, 0.1, 0.2, 0.3mm

6.Performance testing available



Materials' Properties Comparison:



Item name CsI(Tl) GAGG CdWO4 LYSO LSO BGO GOS(Pr/Tb) Ceramic
Density(g/cm3) 4.51 6.6 7.9 7.15 7.3~7.4 7.13 7.34
Hygroscopic Slightly No No No No No No
Relative light output(% of NaI(Tl)) (for γ-rays) 45 158(HL)/ 132(BL)/79(FD) 32 65-75 75 15-20 71/ 118
Decay time(ns) 1000 150(HL)/ 90(BL)/748(FD) 14000 38-42 40 300 3000/ 600000
Afterglow@30ms 0.6-0.8% 0.1-0.2% 0.1-0.2% N/A N/A 0.1-0.2% 0.1-0.2%
Array type Liner and 2D Liner and 2D Liner and 2D 2D 2D 2D Liner and 2D



Mechanical design for assembling:



Based on the end use of assembled array, there are many kinds of mechanic design from Kinheng to meet the medical and security inspection industry.

1D Liner array are mainly used for Security inspection industy, such as Bagger scanner, Aviation scanner, 3D scanner and NDT. Material Including CsI(Tl), GOS:Tb/Pr Film, GAGG:Ce, CdWO4 scintillator etc. They are typically coupled with Silicon Photodiode line array for read out.

2D array are normally used for imaging, including Medical(SPECT, PET, PET-CT, ToF-PET), SEM, Gamma camera. These 2D array are typically coupled with SIPM array, PMT array for read out. Kinheng provide 2D array including LYSO, CsI(Tl), LSO, GAGG, YSO, CsI(Na), BGO scintillator etc.

Below is kinheng’s typically design drawing for 1D And 2D array for industry.

Cadmium Tungstate Scintillator Array 0

                                                            (Kinheng liner array)



Cadmium Tungstate Scintillator Array 1

                                                               (Kinheng 2D array)



Typical Pixel size& numbers:



Material Typical pixel size Typical numbers
Liner 2D Liner 2D
CsI(Tl) 1.275x2.7 1x1mm 1x16 19x19
GAGG 1.275x2.7 0.5x0.5mm 1X16 8x8
CdWO4 1.275x2.7 3x3mm 1x16 8x8
LYSO/LSO/YSO N/A 1X1mm N/A 25x25
BGO N/A 1x1mm N/A 13X13
GOS(Tb/Pr) ceramic 1.275X2.7 1X1mm 1X16 19X19



Minimal size of Pixel:



Material Minimal pixel size
Liner 2D
CsI(Tl) 0.4mm pitch 0.5mm pitch
GAGG 0.4mm pitch 0.2mm
CdWO4 0.4mm pitch 1mm
LYSO/LSO/YSO N/A 0.2mm
BGO N/A 0.2mm
GOS(Tb/Pr) ceramic 0.4mm pitch 1mm pitch



Scintillation Array Reflector and Adhesive parameter :



Reflector Thickness of Reflector+Adhesive
Liner 2D
TiO2 0.1-1mm 0.1—1mm
BaSO4 0.1mm 0.1-0.5mm
ESR N/A 0.08mm
E60 N/A 0.075mm



Application:

Item name CsI(Tl) GAGG CdWO4 LYSO LSO BGO GOS(Tb/Pr) Ceramic
PET, ToF-PET   Yes   Yes Yes
SPECT Yes Yes
CT       Yes Yes Yes Yes
NDT Yes Yes Yes
Bagger scanner Yes Yes Yes
Container Checking Yes Yes Yes
Gamma camera Yes Yes



Product shots:



Cadmium Tungstate Scintillator Array 2

Cadmium Tungstate Scintillator Array 3



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
