Product Details:
|
| Material: | LiNbO3 | Size: | Dia4"x4" |
|---|---|---|---|
| Chemical Formula: | LiNbO3 | Melting Point (℃): | 1253 |
| Lattice: | Triangle System | Crystal Density (ps): | 4.464 × 103kg / M 3 |
| Hardness: | 5 | Thermal Capacity (Cp): | 89J / K.mol |
| Thermal Expansion Coefficient: | 15.4 × 10-6 / ℃ 7.5 | ||
| Highlight: | ferroelectric linbo3 single crystal,LN Wafer 4"x4",linbo3 single crystal 4"x4" |
||
LiNbO3 is a good kind of ferroelectric single crystal with piezoelectric, photoelectric and acousto-optic characteristics which has low acoustic wave transmission loss and low surface acoustic wave propagation speed. Widely used for Filters, resonators, delay lines, signal compression, and stretching application.
Properties:
| Name | Lithium niobate | |
| Chemical formula | LiNbO3 | |
| Melting point (℃) | 1253 | |
| Lattice | Triangle system | |
| Crystal density (ps) | 4.464 × 103kg / m 3 | |
| Curie temperature (Tc) | 1145 ℃ | |
| Thermal capacity (Cp) | 89J / K.mol | |
| Thermal expansion coefficient | 15.4 × 10-6 / ℃ 7.5 | |
| Hardness | 5.0 | |
Advantage:
Low acoustic wave transmission loss
Low surface acoustic wave propagation speed

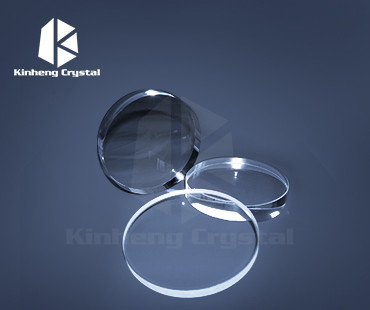

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
