Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output

Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output
Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output

Large Image :  Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output

Description
Hygroscopic: Yes Wavelength Of Emission Maximum(nm): 420nm
Refractive Index At Emission Maximum: 1.84 Primary Decay Time (ns): 630
Light Yield (photons/keV): 38-44 Photoelectron Yield [% Of NaI(Tl): 3
Application: Oil Logging Typical Size: Dia50x300mm

Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output​



Cesium Iodide, activated with Sodium - CsI(Na) - is one of the brightest available scintillators, with a broad emission peaking at 420nm. CsI(Na) has good stopping power, physically rugged and and well suited to a broad range of applications,robust with good mechanically characteristics.

  •

Properties:

Density(g/cm3) 4.51
Melting Point (K) 894
Thermal Expansion Coefficient(K-1) 54 x 10-6
Cleavage Plane None
Hardness (Mho) 2
Hygroscopic Yes
Wavelength of Emission Maximum(nm) 420
Lower Wavelength Cutoff (nm) 300
Refractive Index at Emission Maximum 1.84
Primary Decay Time (ns) 630
Light Yield (photons/keV) 38-44
Photoelectron Yield [% of NaI(Tl)] (for γ-rays) 85



Advantage:

High light output(85% of NaI(Tl))

Good stopping power

Temperature performance

Well matched with PMT



Application:

Oil logging

Spectrum analysis

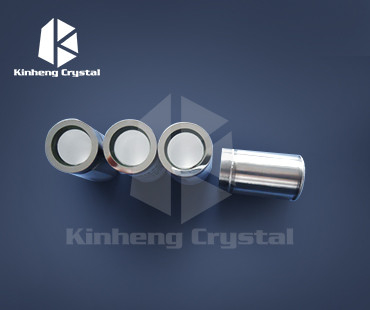

Product shots:

Oil logging Gamma spectrum Dia50x300mm CsI(Na) Scintillator Crystal High Light Output 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
