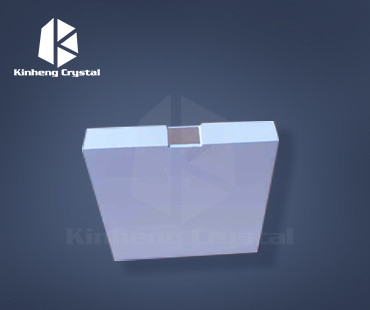

NDT Industry Scintillator Crystal

NDT Industry Scintillator Crystal
NDT Industry Scintillator Crystal

Large Image :  NDT Industry Scintillator Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Model Number: 1X16
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

NDT Industry Scintillator Crystal

Description
Hygroscopic: Slightly Wavelength Of Emission Maximum (nm): 550
Refractive Index At Emission Maximum: 1.79 Encapsulation: TiO2
Afterglow (after 30ms) [%: 0 Light Yield (photons/keV): 52- 56
Photoelectron Yield [% Of NaI(Tl): 0 Min Pixel Size: 0.4mm
Min Thickness: 0.5mm
High Light:

NDT Industry Scintillator Crystal

,

CsI Scintillation crystal

,

CsI(Tl) Scintillator Crystal

Low afterglow 0.4-0.8% after 30ms X ray imaging security inspection CsI(Tl) Scintillator Crystal



Kinheng has capacity for low afterglow CsI(Tl) Scintillator crystal for X ray imaging security inspection and NDT industry, We can select the good afterglow slab for liner array assembly. We can select low afterglow 0.4-0.8% after 30ms for liner array with +/-10% unformity between pixel to pixel and array to array for end use.



Properties:



Density(g/cm3) 4.51
Melting Point (K) 894
Thermal Expansion Coefficient (K-1) 54 x 10-6
Cleavage Plane None
Hardness (Mho) 2
Hygroscopic Slightly
Wavelength of Emission Maximum (nm) 550
Lower Wavelength Cutoff(nm) 320
Refractive Index at Emission Maximum 1.79
Primary Decay Time (ns) 1000
Afterglow (after 30ms) [%] 0.5 – 0.8
Light Yield (photons/keV) 52- 56
Photoelectron Yield [% of NaI(Tl)] (for γ-rays)

45



Advantage:

Well matched with PD

Good stopping power

Good energy resolution/ low afterglow



Application:

Gamma detector

X-ray imaging

Security inspection

High energy physics

SPECT



Testing Sample:



NDT Industry Scintillator Crystal 0



Product shots:

NDT Industry Scintillator Crystal 1



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
