Product Details:
|
| Material: | Thallium Activated Cesium Iodide Or CsI(Tl) Crystal | Readout: | Photodiode Readout Or PD |
|---|---|---|---|
| Application: | Security X-ray Scanning Machine,Industrial Inspection | Max Reverse Voltage: | 10V |
| Operation Temperature: | -10 -- +60℃ | Storage Temperature: | -20 -- +70℃ |
| Afterglow (after 30ms) [%: | 3 | Reflector Thickness: | Customized |
| Product Name: | CsI(Tl) Scintillator Detector | Volume: | Small |
| High Light: | CsI(Tl) Scintillation Detector,CsI Tl x ray scintillator,PD Scintillation Detector |
||
Nuclear high-energy physics tomographic systems CsI(Tl) scintillator detector
The most important feature of Cesium Iodide crystals doped with Thallium CsI(Tl) is their emission spectrum having the maximum at 550 nm, which allows photodiodes or SiPMs to be used to detect the emission. The use of a scintillator-photodiode pair makes it possible to diminish significantly the size of the detecting system (due to the use of photodiode instead of PMT), to do without high-voltage supply source, and to use detecting systems in magnetic fields.
The high radiation resistance allows CsI(TI) to be used in nuclear, medium and high-energy physics. Special treatment ensures obtaining of CsI(TI) scintillators with a low afterglow for the use in tomographic systems.
Properties:
Limit Parameter:
| Index | Value |
| Max Reverse Voltage | 10V |
| Operation Temperature | -10 -- +60℃ |
| Storage Temperature | -20 -- +70℃ |
Specification for PD Array:
| Parameter | Symbol | Term | Typical value | Max | Unit |
| Spectral Response Ranges | λp | 350-1000 | - | nm | |
| Peak Response Wavelength | λ | 800 | - | nm | |
| Photosensitivity | S | λ=550 | 0.44 | - | A/W |
| λp=800 | 0.64 | ||||
| Dark Current | Id | Vr=10mV | 3 - 5 | 10 | pA |
| Pixel Capacitance | Ct | Vr=0,f=10kHz | 40 - 50 | 70 | pF |
Advantage:
Good energy resolution
Low cost
Application:
Security X-ray scanning machine
Industrial inspection

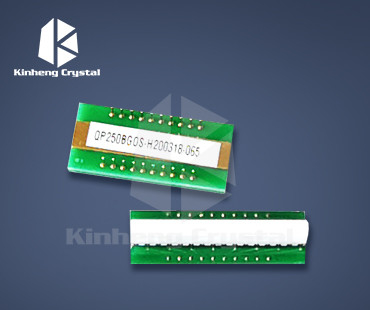

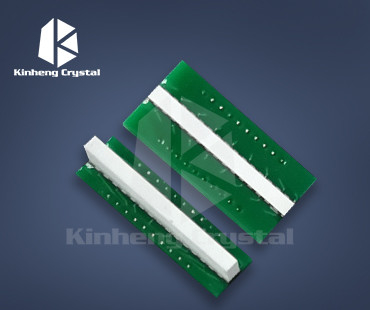

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
