Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

0.5 mm 1.0 mm Al2O3 Substrate Sapphire Crystal Wafer 9 Mho

Description
Product Name: Al2O3 Substrate ,Sapphire Crystal Wafer Chemical Formula: Al2O3
Size: 10x3, 10x5, 10x10, 15x15, 20x15, 20x20,Dia15, Dia 20, Dia 1'' Thickness: 0.5 Mm, 1.0 Mm
Polished: SSP Or DSP Lattice Constant: A=4.748Å C=12.97Å
Angle Of Crystalline: Special Size And Orientation Are Available On Demand Ra: ≤5Å(5µm×5µm)
High Light:

1.0 mm Sapphire Crystal Wafer

,

9 Mho Al2O3 Substrate

,

0.5 mm Sapphire Crystal Wafer

High temperature resistance and hardness Al2O3 Substrate Sapphire Crystal wafer



Sapphire crystal has good thermal properties, excellent electrical properties and dielectric properties, and good thermostability, thermal conductivity, infrared permeability, chemical stability, High hardness, anti-chemical corrosion, Sapphire,Al2O3 are widely used in industrial, national defense and scientific research (such as high-temperature infrared windows, etc.). It is also a extensive use in monocrystalline substrate material.



Properties:



Crystal Purity > 99.99%
Melt Point(℃) 2040
Density(g/cm3) 3.98
Hardness (Mho)
Thermal Expansion 7.5 (x10-6/ oC)
Specific Heat 0.10 ( cal / oC)
Thermal Conductivity 46.06 @ 0 oC 25.12 @ 100 oC, 12.56 @ 400 oC ( W/(m.K) )
Dielectric Constant ~ 9.4 @300K at A axis ~ 11.58@ 300K at C axis
Loss Tangent at 10 GHz < 2x10-5 at A axis , <5 x10-5 at C axis





Advantage:

1.Heat conduction
2.High hardness
3.Infrared transmission
4.Good chemical stability

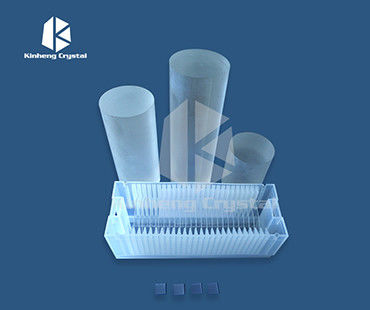

Product shots:



0.5 mm 1.0 mm Al2O3 Substrate Sapphire Crystal Wafer 9 Mho 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
