Product Details:
|
| Cleavage Plane: | None | Atomic Number (Effective): | 36 |
|---|---|---|---|
| Melting Poin（℃）t: | 1875 | Thermal Expansion Coeff.: | 4 -11x 10‾⁶ |
| Photoelectron Yield % Of NaI(Tl): | 60-70 | Radiation Length(cm): | 2.7 @ 511keV |
| Afterglow: | <0.005% @ 6ms | Refractive Index: | 1.95 @370nm |
| Highlight: | YAP:Ce Scintillation Crystal,30ns yap crystal,Scintillation Crystal |
||

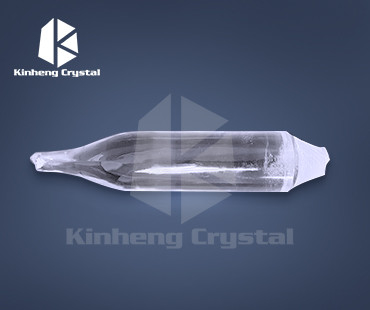

Good stopping power with decay time 30ns YAP:Ce Scintillation Crystal
YAP(Ce) Scintillation crystal strengths:
Properties:
| Crystal System | Orthorhombic |
| Density(g/cm3) | 5.3 |
| Hardness (Mho) | 8.5 |
| Light Yield (photons/keV) | 25 |
| Decay Time(ns) | 30 |
| Wave Length(nm) | 370 |
Advantage:
Fast decay time
Good stopping power
Good performance at high temperatures
Non-hygroscopic
Mechanical strength
Application:
Gamma and X-ray counting
Electron microscopy
Electron X-ray imaging screens
Oil logging
Product shots:
