Product Details:
|
| Material: | Scintillator Crystal,scintillator,crystal | Product Name: | LuAG:Pr |
|---|---|---|---|
| Chemical Formula: | Lu3Al5O12:Pr | Full Name: | Lutetium Aluminium Garnet |
| HS Code: | 9001909000 | Size: | Customized Available |
| Color: | Green | Strength: | High Temperature Performance |
High temperature performance Fast decay time LuAG:Pr scintillator Crystal
Lutetium Aluminium Garnet - LuAG(Pr) - is a relatively dense scintillator with a fast decay time (20ns). It’s peak emission is at 310nm. Good temperature properties.
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 6.7 |
| Hardness (Mho) | 8 |
| Light Yield (photons/keV) | 20 |
| Energy Resolution(FWHM) | ≤5% |
| Decay Time(ns) | ≤20 |
| Center Wavelength | 310 |
Advantage:
Non-hygroscopic
High temperature performance
Fast decay time
Application:
Fast particle imaging
PEM
Oil logging

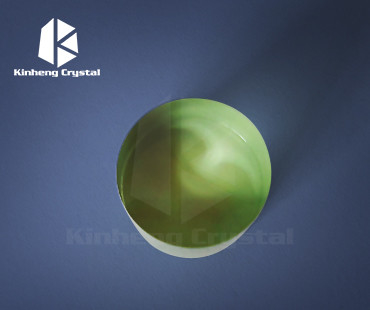

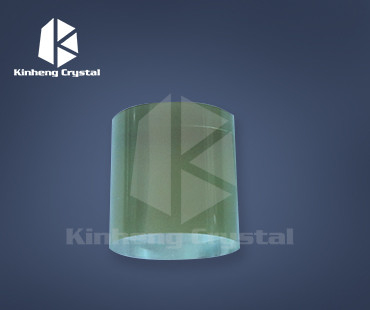

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
