Product Details:
|
| Name: | LuAG:Ce | Advantage: | Fast Decay Time |
|---|---|---|---|
| Cleavage Plane: | None | Atomic Number (Effective): | 58.9 |
| Melting Point(℃): | 2020 | Thermal Expansion Coeff.: | 8.8 X 10‾⁶ |
| Wavelength Range(nm): | 475-800 | Radiation Length(cm): | 1.3 |
| Refractive Index: | 1.84 @633nm |
Hardness (Mho) 8.5 decay time 70ns LuAG:Ce scintillator crystal
LuAG(Ce) scintillator crystals have the following issues which should be noted. They:
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 6.73 |
| Hardness (Mho) | 8.5 |
| Light Yield (photons/keV) | 25 |
| Energy Resolution(FWHM) | 6.5% |
| Decay Time(ns) | 70 |
| Center Wavelength | 530 |
Advantage:
Non-hygroscopic
Stable scintillating characteristics
Fast decay time
Application:
X ray imaging
Imaging screen

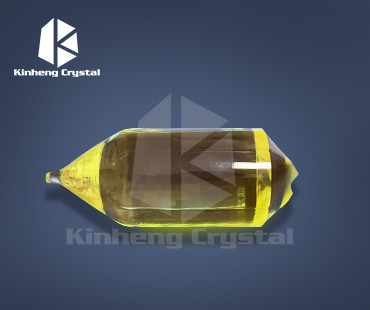

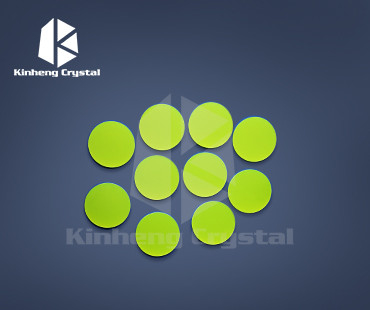

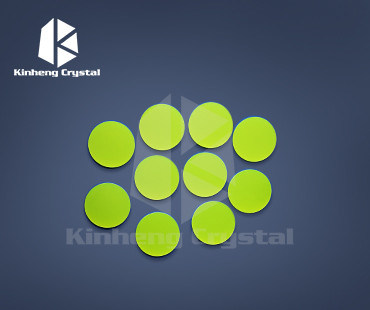

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
