Product Details:
|
| Material: | Scintillator Crystal,scintillator,crystal | Product Name: | LuAG:Ce |
|---|---|---|---|
| Full Name: | Lutetium Aluminium Garnet | Chemical Formula: | Lu3Al5O12:Ce |
| HS Code: | 9001909000 | Hygroscopic: | None |
| Color: | Yellow | Application: | Imaging Screen |
Non-hygroscopic fast decay time LuAG:Ce scintillation crystal
Lutetium Aluminium Garnet (LuAG(Ce) - Lu3Al5O12:Ce) scintillator crystals are relatively dense (6.73g/cm³), have a high Z (58.9) and have a a fast decay time (70ns). With a peak emission of 535nm, LuAG(Ce) output is well is well matched to photodiodes avalanche photodiodes APDs and silicon photomultipliers (SiPMs). In addition these crystals have good temperature properties.
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 6.73 |
| Hardness (Mho) | 8.5 |
| Light Yield (photons/keV) | 25 |
| Energy Resolution(FWHM) | 6.5% |
| Decay Time(ns) | 70 |
| Center Wavelength | 530 |
Advantage:
Non-hygroscopic
Stable scintillating characteristics
Fast decay time
Application:
X ray imaging
Imaging screen

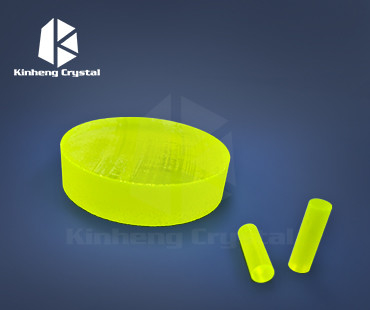

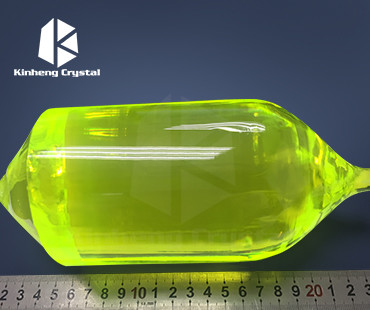

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
