Product Details:
|
| Material: | Scintillator Crystal， Scintillator ，crystal | Product Name: | BaF2 |
|---|---|---|---|
| Chemical Formula: | BaF2 | Atomic Number (Effective): | 52.2 |
| Crystal Structure: | Cubic | Thermal Expansion Coeff.: | 18.4 X 10‾⁶ |
| Density (g/cm3): | 4.89 | Melting Point (℃): | 1280 |
| High Light: | 4.89g/cm3 BaF2 Scintillator,ISO baf2 crystal,BaF2 Scintillator Crystal |
||
Good scintillation and optical properties BaF2 Scintillator Crystal
BaF2 - Barium Fluoride - is a salt compound of barium and fluorine. In crystal form it is optically transparent over a wide range from the UV through to the IR and widely used to fabricate optical components. It is also has a well established scintillator material.
Properties:
| Transmission Range (μm) | 0.15~12.5 |
| Transmittance | ＞90% (0.35-9um) |
| Refractivity(2.58μm) | 1.4626 |
| Radiation Length(cm) | 2.06 |
| Emission Peak (nm) | 310(slow);220(fast) |
| Decay Time(ns) | 620(slow);0.6(fast) |
| Light Output (Comparing NaI(Tl)) | 20%(slow);4%(fast) |
| Cleavage Plane | (111) |
| Density (g/cm3) | 4.89 |
| Melting Point (℃) | 1280 |
Advantage:
One of fastest scintillators
Produce optical emissions in the form of a ‘fast’ and ‘slow’ pulses
Good scintillation and optical properties
Application:
High energy physics
Nuclear physics
Nuclear medical instruments
Optical UV-IR window

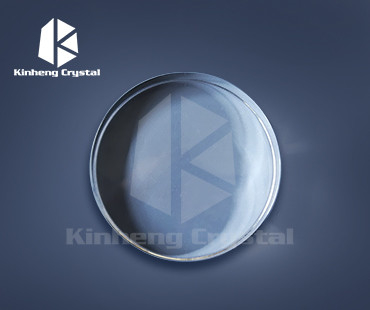

Product shots:
