Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns

Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns
Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns
Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns

Large Image :  Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns

Description
Material: Scintillator Crystal Name: LSO
Product Color: Transparent Cleavage Plane: None
Hygroscopic: None Atomic Number (Effective): 75
Light Yield(photons/keV): 30 Radiation Length(cm): 1.14
High Light:

High Z 75 Scintillator Crystal

,

lyso scintillator 40ns

,

High Z 75 Scintillator Crystal

Decay Time 40ns density 7.4g.cm³ high Z 75 LSO Scintillation crystal



LSO(Ce) scintillator crystals have the following issues which should be noted:



  • Has an intrinsic radiation background - c.300 cps/cm³
  • Quite brittle and needs careful handling and machining



Properties:



Crystal System Monoclinic
Melting Point(℃) 2070
Density(g/cm3) 7.3~7.4
Hardness (Mho) 5.8
Refractive Index 1.82
Light Output (Comparing NaI(Tl)) 75%
Decay Time(ns) <40
Wavelength(nm) 410
Anti-radiation (rad) >1×108



Advantage:

High density

Good stopping power

Short decay time



Application:

Nuclear medical imaging (PET)

High energy physics

Geologic survey

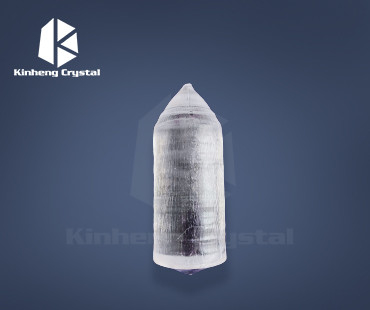

Product shots:

Density 7.4g.cm3 High Z 75 LSO Scintillator Crystal Decay Time 40ns 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q: Where is your main market?

A: Europe, America, Asia.
