CLYC Scintillation Crystal Decay Time Of 1ns Emit With A 370nm Peak

CLYC Scintillation Crystal Decay Time Of 1ns Emit With A 370nm Peak
CLYC Scintillation Crystal Decay Time Of 1ns Emit With A 370nm Peak

Large Image :  CLYC Scintillation Crystal Decay Time Of 1ns Emit With A 370nm Peak

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

CLYC Scintillation Crystal Decay Time Of 1ns Emit With A 370nm Peak

Description
Material: Scintillation Crystal Name: CLYC:Ce
Full Name: Cesium Lithium Yttrium Chloride (Ce) Hygroscopic: Yes
Wavelength (Max. Emission): 370nm Lower Wavelength Cut-off: 270nm
Light Yield(photons/keV): 20 Radiation Length(cm): 3.42
Refractive Index: 1.81@370nm
High Light:

CLYC Scintillation Crystal

,

CLYC Scintillator 370nm

,

Scintillation Crystal 1ns

Decay time of 1ns Emit with a 370nm peak CLYC Scintillation Crystal





CLYC(Ce) scintillator crystals have the following issues which should be noted. They are:



  • Hygroscopic and need encapsulation



Properties:



Density(g/cm3) 3.31
Wavelength of emission max(nm) 370
Energy resolution (Cs137) 5%
Decay time(ns) 1,50,1000
Light yield photons 1MeV γ ray 20000
Light yield photons 1MeV neutron ray 70000
Pulse shapeγ-1n discrimination Yes
Hygroscopic

Yes





















Advantage:

Neutron&gamma ray discrimination ability

Good energy resolution

High light output

Fast decay time



Application:

Gamma / neutron detection

Basic research

Safety inspection

Oil well detection

Environmental monitoring

Nuclear imaging

Medical treatment

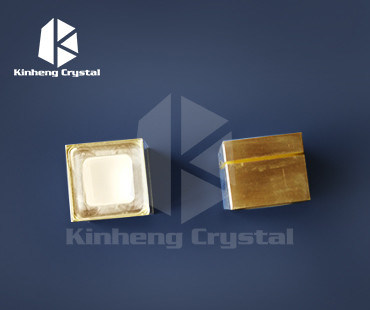

Product shots:



 CLYC Scintillation Crystal Decay Time Of 1ns Emit With A 370nm Peak 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
