NaI(Tl) Scintillation Crystal

China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

NaI(Tl) Scintillation Crystal

NaI(Tl) Scintillation Crystal
NaI(Tl) Scintillation Crystal

Large Image :  NaI(Tl) Scintillation Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

NaI(Tl) Scintillation Crystal

Product Name: Sodium Iodide Doped With Thallium Wavelength Of Emission Maximum (nm): 420
Quality: Good Encapsulation: Aluminum/stainless Steel/titanium Alloy Housing
Hygroscopic: Yes Chemical Formula: NaI(Tl)
Shape: Cylinder, Cubic, Retangular,Flakes Available Customized Service: Yes
High Light:

NaI(Tl) Scintillation Crystal


420nm nai crystal


NaI(Tl) Scintillation Crystal

Cost effective high detection efficiency NaI(Tl) scintillation crystal


NaI(Tl) is also known as sodium iodide doped with thallium,which has been used for more than 60 years and it is a very mature scintillation crystal.This scintillation material has many advantages. The wavelength is well matched with PMT read out ,it has high light output and detection efficiency and it is also very cost effective.Kinheng can offer many configurations such as Be optical window, normal glass optical window and sapphire optical window.




Density(g/cm3) 3.67
Melting Point (K) 924
Thermal expansion coefficient (K-1) 47.4 x 10-6
Hardness (Mho) 2
Hygroscopic Yes
Wavelength of Emission Maximum (nm) 420
Refractive Index at Emission Maximum 1.85
Primary Decay Time(ns) 250
Temperature Coefficient of Light Yield 0.3% K-¹
Light Yield (photons/keV) 38



Cost effective

Larger size available

High light output/ detection efficiency

Single /poly/forged crystal available

Wavelength well matched PMT read out



Nuclear medicine

Environmental measurements


High-energy physics

Radiation detection


%PHR Sample:


NaI(Tl) Scintillation Crystal 0

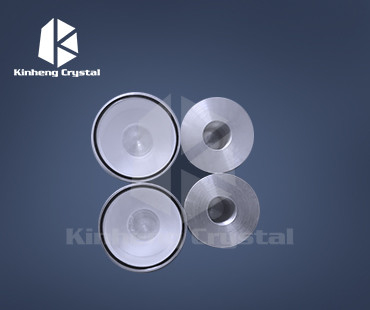

Product shots:


NaI(Tl) Scintillation Crystal 1



1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.


2.Q:Where is your main market?

A:Europe, America, Asia.
