Product Details:
|
| Material: | Scintillator Crystal | HS Code: | 8541609000 |
|---|---|---|---|
| Shape: | Cylinder, Cubic, Retangular,Flakes Available | Name: | CWO Scintillator |
| Quality: | Excellent | Chemical Formula: | CdWO4 |
| Density（g/cm3）: | 7.9 | Reflector: | TiO2 |
| High Light: | CWO Scintillator Crystal,cdwo4 CWO scintillator,Scintillator Crystal After 30ms |
||
afterglow 0.1% after 30ms density 7.9 non-hygroscopic CWO scintillator crystal
CdWO4 scintillator crystals are highly effective gamma-ray absorbers due to their high density and high Z characteristics.
CdWO4 scintillator crystals are:
Properties:
| Density(g/cm3) | 7.9 |
| Decay Time(ns) | 14000 |
| Emission Peak(nm) | 470 |
| Light Yield (photons/keV) | 12 |
| Melting Point(°C) | 1272 |
| Hardness (Mho) | 4-4.5 |
| Refractive Index | 2.3 |
| Hygroscopic | None |
| Cleavage Plane | (101) |
Advantage:
High density, high Z
Low afterglow
High detection efficiency
Application:
Nuclear medical X-ray CT scanner
Container inspection industry
Vehicle scanning

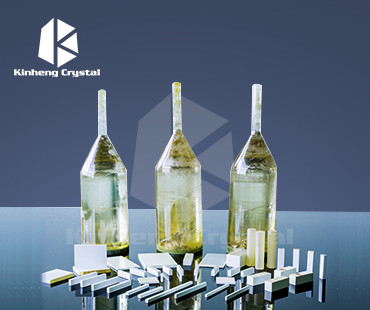

Product shots:
