Product Details:
|
Material: | YSO Scintillator | Pixel: | Customization |
---|---|---|---|
Number Of Pixel: | Customization | Reflector: | BaSO4 Or ESR |
Product Name: | YSO:Ce | Full Name: | Yttrium Orthosilicate:Cerium |
Chemical Formula: | Y₂SiO₅:Ce | Warranty: | One Year |
High Light: | YSO scintillator Array,ESR yso scintillator,YSO scintillator Array |

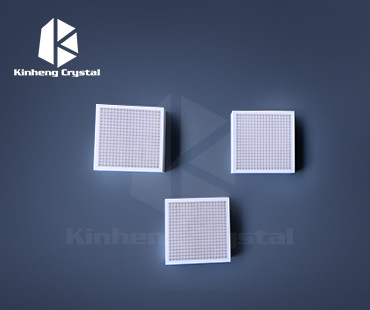

Nuclear medical imaging PET Geologic survey YSO Matrix YSO scintillator Array
YSO:Ce has excellent property including high light output, short decay time, excellent radio resistance, high density, more effective atomic number, high detection efficiency again Gamma ray, non-hygroscopic, stable etc.
Kinheng offers various arrays for end application. We can provide CsI(Tl), CsI(Na), CdWO4, LYSO,LSO, YSO, GAGG, BGO scintillation arrays. Based on the application TiO2/BaSO4/ESR/E60 are wildly used as reflective material for pixel isolation. Our mechanical processing keeps the minimal tolerance to optimize array’s physical properties including tolerance, dimension, minimal-cross talk and uniformity etc.
Why Choose Kinheng:
1.Minimal pixel dimension available
2.Reduced optical crosstalk
3.Good uniformity between pixel to pixel/ Array to array
4.TiO2/BaSO4/ESR/E60 reflectors available
5.Pixel Gap: 0.08, 0.1, 0.2, 0.3mm
6.Performance testing available
Materials' Properties Comparison:
Item name | CsI(Tl) | GAGG | CdWO4 | LYSO | LSO | BGO | GOS(Pr/Tb) Ceramic |
Density(g/cm3) | 4.51 | 6.6 | 7.9 | 7.15 | 7.3~7.4 | 7.13 | 7.34 |
Hygroscopic | Slightly | No | No | No | No | No | No |
Relative light output(% of NaI(Tl)) (for γ-rays) | 45 | 158(HL)/ 132(BL)/79(FD) | 32 | 65-75 | 75 | 15-20 | 71/ 118 |
Decay time(ns) | 1000 | 150(HL)/ 90(BL)/48(FD) | 14000 | 38-42 | 40 | 300 | 3000/ 600000 |
Afterglow@30ms | 0.6-0.8% | 0.1-0.2% | 0.1-0.2% | N/A | N/A | 0.1-0.2% | 0.1-0.2% |
Array type | Linear and 2D | Linear and 2D | Linear and 2D | 2D | 2D | 2D | Linear and 2D |
Mechanical design for assembling:
Based on the end use of assembled array, there are many kinds of mechanic design from Kinheng to meet the medical and security inspection industry.
1D Liner array are mainly used for Security inspection industy, such as Bagger scanner, Aviation scanner, 3D scanner and NDT. Material Including CsI(Tl), GOS:Tb/Pr Film, GAGG:Ce, CdWO4 scintillator etc. They are typically coupled with Silicon Photodiode linear array for read out.
2D array are normally used for imaging, including Medical(SPECT, PET, PET-CT, ToF-PET), SEM, Gamma camera. These 2D array are typically coupled with SIPM array, PMT array for read out. Kinheng provide 2D array including LYSO, CsI(Tl), LSO, GAGG, YSO, CsI(Na), BGO scintillator etc.
Below is kinheng’s typically design drawing for 1D And 2D array for industry.
(Kinheng linear array)
(Kinheng 2D array)
Typical Pixel size& numbers:
Material | Typical pixel size | Typical numbers | ||
Linear | 2D | Linear | 2D | |
CsI(Tl) | 1.275x2.7 | 1x1mm | 1x16 | 19x19 |
GAGG | 1.275x2.7 | 0.5x0.5mm | 1X16 | 8x8 |
CdWO4 | 1.275x2.7 | 3x3mm | 1x16 | 8x8 |
LYSO/LSO/YSO | N/A | 1X1mm | N/A | 25x25 |
BGO | N/A | 1x1mm | N/A | 13X13 |
GOS(Tb/Pr) ceramic | 1.275X2.7 | 1X1mm | 1X16 | 19X19 |
Minimal size of Pixel:
Material | Minimal pixel size | |
Linear | 2D | |
CsI(Tl) | 0.4mm pitch | 0.5mm pitch |
GAGG | 0.4mm pitch | 0.2mm pitch |
CdWO4 | 0.4mm pitch | 1mm pitch |
LYSO/LSO/YSO | N/A | 0.2mm pitch |
BGO | N/A | 0.2mm pitch |
GOS(Tb/Pr) ceramic | 0.4mm pitch | 1mm pitch |
Scintillation Array Reflector and Adhesive parameter :
Reflector | Thickness of Reflector+Adhesive | |
Linear | 2D | |
TiO2 | 0.1-1mm | 0.1—1mm |
BaSO4 | 0.1mm | 0.1-0.5mm |
ESR | N/A | 0.08mm |
E60 | N/A | 0.075mm |
Application:
Item name | CsI(Tl) | GAGG | CdWO4 | LYSO | LSO | BGO | GOS(Tb/Pr) Ceramic |
PET, ToF-PET | Yes | Yes | Yes | ||||
SPECT | Yes | Yes | |||||
CT | Yes | Yes | Yes | Yes | |||
NDT | Yes | Yes | Yes | ||||
Bagger scanner | Yes | Yes | Yes | ||||
Container Checking | Yes | Yes | Yes | ||||
Gamma camera | Yes | Yes |
Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
