Product Details:
|
| Material: | LGS (La3Ga5SiO14) Single Crystal | Hardness (Mho): | 6.6 |
|---|---|---|---|
| Growth Method: | Czochralski | System: | Rigonal System, Group 33 A=8.1783 C=5.1014 |
| Coefficient Of Thermal Expansion: | A11:5.10 A 33:3.61 | Density(g/cm3): | 5.754 |
| Melting Point(°C): | 1470 | Acoustic Velocity: | 2400m/Sec |
| Highlight: | 6.6Mho Single Crystal Substrate,2400m/Sec LGS Substrate,5.754g/cm3 Single Crystal Substrate |
||
High thermal stability LGS Substrate LGS Single Crystal Substrate
LGS can be used to make piezoelectric and electro-optical devices. It has high temperature piezoelectric properties. The electromechanical coupling coefficient is three times of that of quartz, and the phase transition temperature is high (from room temperature to melting point 1470 ℃). It can be used in saw, BAW, high temperature sensor and high power, high repetition rate electro-optic Q-switch.
Properties:
| Material | LGS (La3Ga5SiO14) |
| Hardness (Mho) | 6.6 |
| Growth | CZ |
| System |
Rigonal system, group 33 a=8.1783 C=5.1014 |
| Coefficient of thermal expansion | a11:5.10 a 33:3.61 |
| Density(g/cm3) | 5.754 |
| Melting Point(°C) | 1470 |
| Acoustic Velocity | 2400m/Sec |
| Frequency Constant | 1380 |
| Piezoelectric Coupling | K2 BAW: 2.21 SAW:0.3 |
| Dielectric Constant | 18.27/ 52.26 |
| Piezoelectric Strain Constant | D11=6.3 D14=5.4 |
| Inclusion | No |
Advantage:
1.High thermal stability
2.Low equivalent series resistance and electromechanical coupling coefficient 3-4 times of quartz

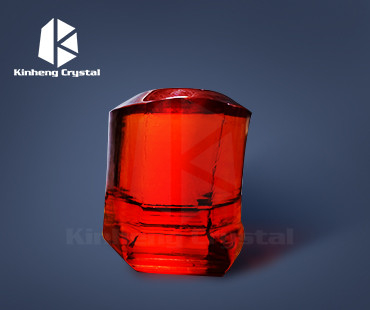

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
