Product Details:
|
| Max Dimension: | Dia70x200mm | Afterglow: | 0.1% After 30ms |
|---|---|---|---|
| Application: | High Energy Container Checking, X Ray Security Inspection | Hygroscopic: | None |
| Cleavage Plance: | 101 | Strength: | Low Afterglow |
| Chemical Formula: | CdWO4 | Crystal Growth Method: | Bridgman |
| Reflector: | TiO2 | HS Code: | 8541609000 |
Vehicle scanning Nuclear medical X-ray CT scanner CdWO4 Scintillator Crystal
CdWO4 scintillator crystals have the following issues which should be noted. They:
Properties:
| Density(g/cm3) | 7.9 |
| Decay Time(ns) | 14000 |
| Emission Peak(nm) | 470 |
| Light Yield (photons/keV) | 12 |
| Melting Point(°C) | 1272 |
| Hardness (Mho) | 4-4.5 |
| Refractive Index | 2.3 |
| Hygroscopic | None |
| Cleavage Plane | (101) |
Advantage:
High density, high Z
Low afterglow
High detection efficiency
Application:
Nuclear medical X-ray CT scanner
Container inspection industry
Vehicle scanning

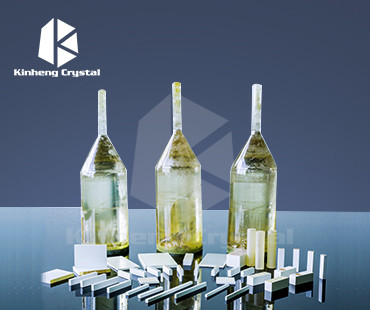

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
