| Material: | LaBr3 Scintillator | Array: | 10x10 |
|---|---|---|---|
| Application: | Medical Imaging，gamma Camera | Reflector: | BaSO4 |
| Warranty: | One Year | Product Name: | LaBr3 Scintillator Array |
| Name: | Lanthanum Bromide | Energy Resolution: | Good |
| High Light: | LaBr3 Scintillation Array,Medical Imaging Lanthanum Bromide Scintillator,Lanthanum Bromide Scintillation Array |
||

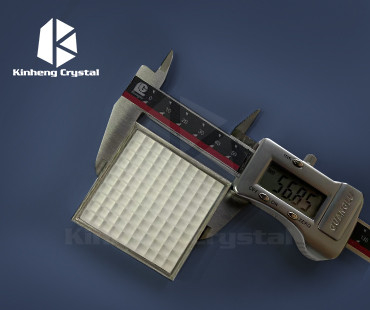

Lanthanum Bromide LaBr3(Ce) Scintillation Array
Why Choose Kinheng:
1.Minimal pixel dimension available
2.Reduced optical crosstalk
3.Good uniformity between pixel to pixel/ Array to array
4.TiO2/BaSO4/ESR/E60 reflectors available
5.Pixel Gap: 0.08, 0.1, 0.2, 0.3mm
6.Performance testing available
We can provide CsI(Tl), CsI(Na), CdWO4, LYSO,LSO, YSO, GAGG, BGO,LaBr3 scintillation arrays. Based on the application, TiO2/BaSO4/ESR/E60 are wildly used as reflective material for pixel isolation. Our mechanical processing keeps the minimal tolerance to optimize array’s physical properties including tolerance, dimension, minimal-cross talk and uniformity etc.
Materials' Properties Comparison:
| Item name | CsI(Tl) | GAGG | CdWO4 | LYSO | LSO | BGO | GOS(Pr/Tb) Ceramic | LaBr3 |
| Density(g/cm3) | 4.51 | 6.6 | 7.9 | 7.15 | 7.3~7.4 | 7.13 | 7.34 | 4.9 |
| Hygroscopic | Slightly | No | No | No | No | No | No | Yes |
| Relative light output(% of NaI(Tl)) (for γ-rays) | 45 | 158(HL)/ 132(BL)/79(FD) | 32 | 65-75 | 75 | 15-20 | 71/ 118 | 130-170 |
| Decay time(ns) | 1000 | 150(HL)/ 90(BL)/48(FD) | 14000 | 38-42 | 40 | 300 | 3000/ 600000 | 20 |
| Afterglow@30ms | 0.6-0.8% | 0.1-0.2% | 0.1-0.2% | N/A | N/A | 0.1-0.2% | 0.1-0.2% | N/A |
| Array type | Linear and 2D | Linear and 2D | Linear and 2D | 2D | 2D | 2D | Linear and 2D | 2D |
Mechanical design for assembling:
Based on the end use of assembled array, there are many kinds of mechanic design from Kinheng to meet the medical and security inspection industry.
1D Liner array are mainly used for Security inspection industy, such as Bagger scanner, Aviation scanner, 3D scanner and NDT. Material Including CsI(Tl), GOS:Tb/Pr Film, GAGG:Ce, CdWO4 scintillator etc. They are typically coupled with Silicon Photodiode line array for read out.
2D array are normally used for imaging, including Medical(SPECT, PET, PET-CT, ToF-PET), SEM, Gamma camera. These 2D array are typically coupled with SIPM array, PMT array for read out. Kinheng provide 2D array including LYSO, CsI(Tl), LSO, GAGG, YSO, CsI(Na), BGO,LaBr3 scintillator etc.
Below is kinheng’s typically design drawing for 1D And 2D array for industry.
(Kinheng linear array)
(Kinheng 2D array)
Typical Pixel size& numbers:
| Material | Typical pixel size | Typical numbers | ||
| Linear | 2D | Linear | 2D | |
| CsI(Tl) | 1.275x2.7 | 1x1mm | 1x16 | 19x19 |
| GAGG | 1.275x2.7 | 0.5x0.5mm | 1X16 | 8x8 |
| CdWO4 | 1.275x2.7 | 3x3mm | 1x16 | 8x8 |
| LYSO/LSO/YSO | N/A | 1X1mm | N/A | 25x25 |
| BGO | N/A | 1x1mm | N/A | 13X13 |
| GOS(Tb/Pr) ceramic | 1.275X2.7 | 1X1mm | 1X16 | 19X19 |
Minimal size of Pixel:
| Material | Minimal pixel size | |
| Linear | 2D | |
| CsI(Tl) | 0.4mm pitch | 0.5mm pitch |
| GAGG | 0.4mm pitch | 0.2mm pitch |
| CdWO4 | 0.4mm pitch | 1mm pitch |
| LYSO/LSO/YSO | N/A | 0.2mm pitch |
| BGO | N/A | 0.2mm pitch |
| GOS(Tb/Pr) ceramic | 0.4mm pitch | 1mm pitch |
Scintillation Array Reflector and Adhesive parameter :
| Reflector | Thickness of Reflector+Adhesive | |
| Linear | 2D | |
| TiO2 | 0.1-1mm | 0.1—1mm |
| BaSO4 | 0.1mm | 0.1-0.5mm |
| ESR | N/A | 0.08mm |
| E60 | N/A | 0.075mm |
Application:
| Item name | CsI(Tl) | GAGG | CdWO4 | LYSO | LSO | BGO | GOS(Tb/Pr) Ceramic |
| PET, ToF-PET | Yes | Yes | Yes | ||||
| SPECT | Yes | Yes | |||||
| CT | Yes | Yes | Yes | Yes | |||
| NDT | Yes | Yes | Yes | ||||
| Bagger scanner | Yes | Yes | Yes | ||||
| Container Checking | Yes | Yes | Yes | ||||
| Gamma camera | Yes | Yes |
Product shots:
Count Map:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
