Product Details:
|
| Material: | GAGG Scintillator | Type: | HL/Balance/FD |
|---|---|---|---|
| Decay Time: | 48ns/90ns/150ns | Ingot Dimension: | Dia60x200mm And Dia50x150mm |
| Application: | Gamma Camera, High Energy Container Checking | Orientation Tolerance: | ＜0.5° |
| Thickness/Diameter Tolerance: | ±0.05mm | Max Dimension: | Dia 82mm(Balance) |
| High Light: | GAGG Single Crystal,Container Checking Scintillator Crystal,60 Photon Yield GAGG Scintillator |
||
High density / photon yield / energy resolution GAGG scintillator crystal
GAGG ( = Gd₃(Ga,Al)₅O₁₂(Ce) ) single crystal is a scintillator material that is neither hygroscopic nor self-emissive.
GAGG single crystals have high light yield and are suitable for radiation detection in Single Photon Emission Computed Tomography "SPECT", "gamma camera", "Compton camera", and "survey meter".
Our products are available in crystal, array, wafer and detector.
Properties:
| Type | GAGG-HL | GAGG Balance | GAGG-FD |
| Crystal System | Cubic | Cubic | Cubic |
| Density(g/cm3) | 6.6 | 6.6 | 6.6 |
| Light Yield (photons/Kev) | 60 | 50 | 30 |
| Decay Time(ns) | ≤150 | ≤90 | ≤48 |
| Center Wavelength | 530 | 530 | 530 |
Advantage:
1. Good stopping power
2. High brightness
3. Low afterglow
4. Fast decay time
Application:
Gamma camera
PET, PEM, SPECT, CT
X-ray & Gamma ray detection
High energy container inspection

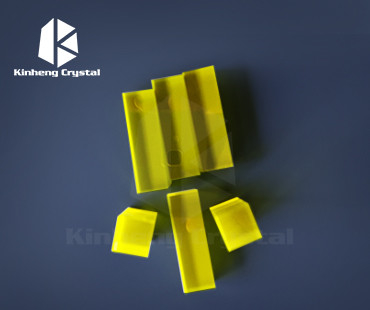

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
