Cubic GAGG Scintillation Crystal for X-ray computed tomography

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

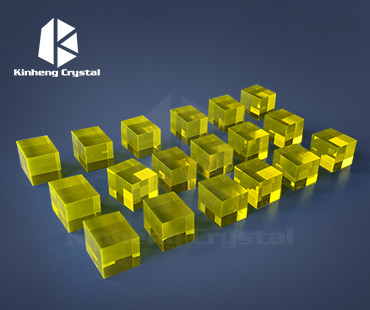

Cubic GAGG Scintillation Crystal for X-ray computed tomography

Cubic GAGG Scintillation Crystal for X-ray computed tomography
Cubic GAGG Scintillation Crystal for X-ray computed tomography

Large Image :  Cubic GAGG Scintillation Crystal for X-ray computed tomography

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Cubic GAGG Scintillation Crystal for X-ray computed tomography

Description
Product Name: GAGG Scintillator Crystal Timing Resolution: 169ps
Center Wavelength: 530 Crystal System: Cubic
Strength: Fast Decay Time,High Brightness Type: Highlight,Balance,Fast Decay Time
Refractive Index (λ=550nm): 1.9 Emission Peak (nm): 530
High Light:

Scintillation Garnet Crystal

,

PET Scintillation Crystals For Computed Tomography

,

Cubic Scintillation Crystal Material

Ruggedness and capability of large crystal growth chemical stability GAGG Scintillation Crystal



The cerium doped multicomponent Gadolinium Aluminum Gallium Garnet crystals, referred as Ce:GAGG with the chemical formula of Ce:Gd3Al2Ga3O12, belong to the most important discoveries that offer excellent scintillation properties as well as having entered the scintillator market in the current decade. The effective atomic number is 54.4, and the emission spectrum peak wavelength is 530 nm. Apart from the high light yield, good energy resolution, high effective atomic number, fast scintillation response, chemical stability also ruggedness and capability of large crystal growth are very important properties for Ce:GAGG crystals as well. The linearity of response on the gamma quanta shows Ce:GAGG crystals is a promising candidate for medical imaging techniques, such as X-ray radiography, X-ray computed tomography (CT), positron emission tomography (PET). Single crystal scintillators are frequently used for scanning electron microscopy (SEM).



Properties:



Type GAGG-HL GAGG Balance GAGG-FD
Crystal System Cubic Cubic Cubic
Density(g/cm3) 6.6 6.6 6.6
Light Yield (photons/Kev) 60 50 30
Decay Time(ns) ≤150 ≤90 ≤48
Center Wavelength 530 530 530



Advantage:

1. Good stopping power

2. High brightness

3. Low afterglow

4. Fast decay time



Application:

Gamma camera

PET, PEM, SPECT, CT

X-ray & Gamma ray detection

High energy container inspection



Product shots:



 Cubic GAGG Scintillation Crystal for X-ray computed tomography 0



Cubic GAGG Scintillation Crystal for X-ray computed tomography 1



FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2. Q: Where is your main market?

A: Europe, America, Asia.
