Product Details:
|
| Material: | GAGG Scintillator | Type: | HL/Balance/FD |
|---|---|---|---|
| Decay Time: | 48ns/90ns/150ns | Ingot Dimension: | Dia60x200mm And Dia50x150mm |
| Hygroscopic: | None | Application: | Gamma Camera, High Energy Container Checking |
| Internal Background: | Extremely Low | Radiation Hardness: | Very Good |
| High Light: | Oxide BGO Scintillator,High Energy Sodium Iodide Scintillator,GAGG Cadmium Tungstate Scintillator |
||
Promising scintillation material for high energy physics Oxide scintillator crystal GAGG
GAGG:Ce crystal is a promising scintillation material for high energy physics calorimeter.
Recently developed cerium-doped GAGG(GAGG: Ce) is a novel scintillator characterized by a high density(6.6g/cm3), high light yield(60,000 photon/MeV), fast scintillation decay time(~48 ns), very good radiation hardness, non-hygroscopicity and extremely low internal background.
Properties:
| Type | GAGG-HL | GAGG Balance | GAGG-FD |
| Crystal System | Cubic | Cubic | Cubic |
| Density(g/cm3) | 6.6 | 6.6 | 6.6 |
| Light Yield (photons/Kev) | 60 | 50 | 30 |
| Decay Time(ns) | ≤150 | ≤90 | ≤48 |
| Center Wavelength | 530 | 530 | 530 |
Advantage:
1. Good stopping power
2. High brightness
3. Low afterglow
4. Fast decay time
Application:
Gamma camera
PET, PEM, SPECT, CT
X-ray & Gamma ray detection
High energy container inspection

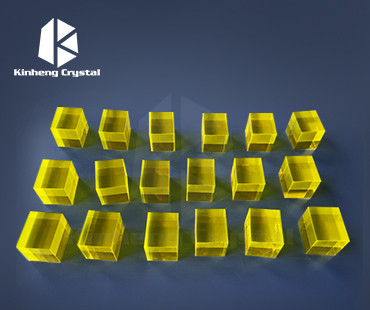

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
