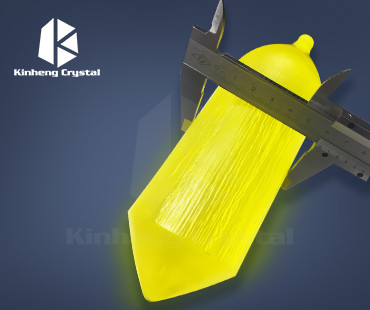

High Light Output GAGG Scintillation Crystal Balance Type

High Light Output GAGG Scintillation Crystal Balance Type
High Light Output GAGG Scintillation Crystal Balance Type

Large Image :  High Light Output GAGG Scintillation Crystal Balance Type

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

High Light Output GAGG Scintillation Crystal Balance Type

Description
Product Name: GAGG Scintillator Crystal Timing Resolution: 169ps
Center Wavelength: 530 Crystal System: Cubic
Strength: Fast Decay Time,High Brightness Reflector: BaSO4
Self Radiation: No Energy Resolution (5x5x5 Mm Cubic, 662KeV): 5%-6%
High Light:

Balance Types GAGG Scintillation Crystal

,

GAGG Scintillation Crystal Detector

,

High Light Output Cadmium Tungstate Scintillator

High light output(GAGG-HL), fast decay time(GAGG-FD) and GAGG Balance types GAGG Scintillation Crystal



GAGG(Ce) (Gd2Al2Ga3O12:Ce) is a promising new scintillator for SPECT, as well as gamma ray and Compton electron detection.

Kinheng crystal has 3 types of GAGG(Ce) crystal, with high light output(GAGG-HL), fast decay time(GAGG-FD) and the one between GAGG-HL and GAGG-FD(GAGG Balance), for the customers in different fields.



Besides the single Ce: GAGG crystal, we are able to fabricate it into linear and 2 dimensional array, the pixel size and separator could be achieved based on requirement. Detailed information please check our GAGG scintillation array products.



Properties:



Type GAGG-HL GAGG Balance GAGG-FD
Crystal System Cubic Cubic Cubic
Density(g/cm3) 6.6 6.6 6.6
Light Yield (photons/Kev) 60 50 30
Decay Time(ns) ≤150 ≤90 ≤48
Center Wavelength 530 530 530



Advantage:

1. Good stopping power

2. High brightness

3. Low afterglow

4. Fast decay time



Application:

Gamma camera

PET, PEM, SPECT, CT

X-ray & Gamma ray detection

High energy container inspection



Product shots:



 High Light Output GAGG Scintillation Crystal Balance Type 0



High Light Output GAGG Scintillation Crystal Balance Type 1



FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2. Q: Where is your main market?

A: Europe, America, Asia.
