Product Details:
|
| Crystal Purity: | > 99.99% | Melt Point(℃): | 2040 |
|---|---|---|---|
| Density(g/cm3): | 3.98 | Hardness (Mho): | 9 |
| Thermal Expansion: | 7.5 (x10-6/ OC) | Specific Heat: | 0.10 ( Cal / OC) |
| Orientation: | C-plane (0001), A-plane (11-20), M-plane (10-10), R-plane (1-102) | Dielectric Constant: | ~ 9.4 @300K At A Axis ~ 11.58@ 300K At C Axis |
| High Light: | Al2O3 Sapphire Crystal Wafer,Al2O3 sapphire single crystal,ISO Sapphire Crystal Wafer |
||
Good thermal electrical dielectric property Al2O3 Substrate Sapphire Crystal wafer
Sapphire (Al2O3) single crystal is an excellent multifunctional material. It is resistant to high temperature, has good heat conduction, high hardness, transparent to infrared, and stable chemical characters. It is widely used in many fields of industry, defense, and scientific research (such as a high-temperature infrared window). It is also a widely used single-crystal substrate material, which is the preferred substrate for the current blue, violet, white light-emitting diode (LED), and blue laser (LD) industries (first need to extend the GaN film on the sapphire substrate). It is also an essential superconducting thin film substrate. In addition to making high-temperature superconducting films such as Y-series and La-series, it can also be used to grow new practical MgB2 (magnesium diboride) superconducting films.
Properties:
| Crystal Purity | > 99.99% |
| Melt Point(℃) | 2040 |
| Density(g/cm3) | 3.98 |
| Hardness (Mho) | 9 |
| Thermal Expansion | 7.5 (x10-6/ oC) |
| Specific Heat | 0.10 ( cal / oC) |
| Thermal Conductivity | 46.06 @ 0 oC 25.12 @ 100 oC, 12.56 @ 400 oC ( W/(m.K) ) |
| Dielectric Constant | ~ 9.4 @300K at A axis ~ 11.58@ 300K at C axis |
| Loss Tangent at 10 GHz | < 2x10-5 at A axis , <5 x10-5 at C axis |
Advantage:
1.Heat conduction
2.High hardness
3.Infrared transmission
4.Good chemical stability

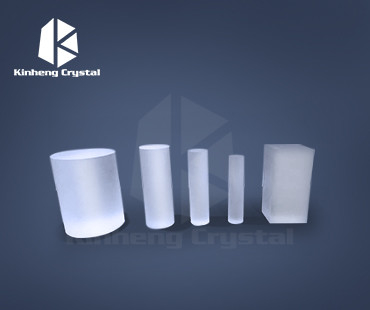

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
