Product Details:
|
Energy Resolution @ Cs137 662Kev: | 2.5-3.5% Cs137@662Kev | Background: | Low |
---|---|---|---|
Housing: | Aluminum Housing | Hygroscopic: | Yes |
Density(g/cm3): | 4.9 | Emission Peak (nm): | 380 |
Light Output (Comparing NaI(Tl)): | 130%~170% | Decay Time (ns): | 20 |
Encapsulation: | Per Request | ||
High Light: | LaBr3:Ce Scintillation Crystal,LaBr3:Ce Scintillator,Scintillation Crystal Dia1"x1" |
3% energy resolution Dia1"x1" Gamma spectrum LaBr3:Ce Scintillator Crystal
Kinheng has capacity for good energy resolution from 2.5-3.5% range selection, We are able to provide Dia1"x1", Dia1.5"x1.5" and Dia2"x2" LaBr3 crystal for spectrum analysis, radiation detector and oil logging industry. Our crystals has extremely low background which makes the signal wiht very low noise available.
Properties:
Density(g/cm3) | 4.9 |
Emission Peak (nm) | 380 |
Light Output (Comparing NaI(Tl)) | 130%~170% |
Decay Time (ns) | 20 |
Energy Resolution @ Cs137 662Kev | 2.5~3.5% |
Advantage:
Fast decay time
High light output
Excellent energy resolution
High count rate
Low background
Application:
Gamma detection
Radiation counting
Oil industry
Medical imaging camera
Energy spectrometer

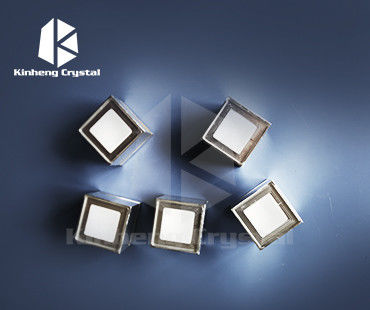

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
