TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index

TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index
TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index

Large Image :  TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index

Description
Product Name: TeO2 Acoustooptic Optic Crystal Full Name: Tellurium Dioxide Acousto-optic Crystal
Chemical Formula: TeO2 Property: Value
Molar Mass: 159.60 G/mol Density: 5.99 ± 0.03 /cm3
Lattice Distances: A = 4.8122 Å; C = 7.6157 Å Symmetry: Tetragonal, 422 (D4)
Transmitting Range: 0.33 ~ 5.0 Microns
High Light:

TeO2 Acousto Optic Crystal

,

0.33 microns tellurium dioxide crystal

,

5.0 microns Acousto Optic Crystal

High figure of merit and refractive index TeO2 Acoustooptic Optic Crystal



Tellurium Dioxide (TeO2, Paratellurite)is an excellent acousto-optic crystal material, it is widely applied in the production of Acousto-optic modulator (AOM), Acousto-optical deflector(AOD), Acousto-optical tunable filter (AOTF), Laser Q-switches, RF spectrum analyzers in laser technology science and optoelectronic technology, because of its high figure of merit ,which depended on high elastic coefficient and high refractive index. TeO2 acousto-optic deflectors are more suitable for acousto-optic effects with high diffraction efficiency, long bandwidth and high beam deflection speed. TeO2has been widely used to fabricate anomalous acousto-optic devices.



Properties:



Density(g/cm3) 6
Melt point (℃) 733
Hardness (Mho) 4
Color clarity/colorless
Clarity Wave(mm) 0.33-5.0
Light Transmittance@632.8nm >70%
Refraction@632.8nm ne =2.411 no= 2.258
Thermal Conductivity Coefficient
(mW/cm·℃)
30



Advantage:

1.Good birefringence and optical rotation performance

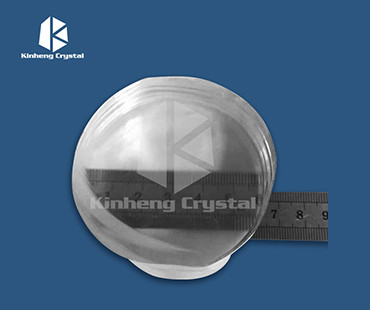

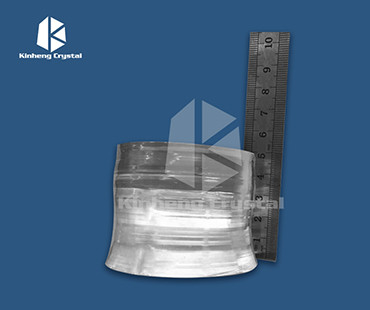

Product shots:



TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index 0TeO2 Acoustooptic Optic Crystal High Figure Of Merit And Refractive Index 1



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
