Very Small Dielectric Constant Magnesium Oxide Substrate MgO Substrate

Very Small Dielectric Constant Magnesium Oxide Substrate MgO Substrate
Very Small Dielectric Constant Magnesium Oxide Substrate MgO Substrate

Large Image :  Very Small Dielectric Constant Magnesium Oxide Substrate MgO Substrate

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Very Small Dielectric Constant Magnesium Oxide Substrate MgO Substrate

Description
Crystal Structure: Cubic Material: MgO Single Crystal
Product Name: MgO Substrate HS Code: 3818009000
Warranty: One Year Strength: Very Small Dielectric Constant
Full Name: Magnesium Oxide Single Crystal Substrate Crystal Prefection: No Visible Inclusions And Micro Cracking, X-Ray Rocking Curve Available
Hardness(Mohs): 5.5
High Light:

5.5Mohs magnesium oxide substrate

,

mgo single crystal substrate

,

Cubic magnesium oxide substrate

Very small dielectric constant MgO Substrate single crystal substrate



High quality MgO magnesium oxide crystals are used are used widely for various thin film applications and as optical windows. Customized MgO crystal substrates and windows are available upon request.



Properties:



Growth Method Special Arc Melting
Crystal Structure Cubic
Crystallographic Lattice Constant a=4.216Å
Density(g/cm3) 3.58
Melting Point(℃) 2852
Crystal Purity 99.95%
Dielectric Constant 9.8
Thermal Expansion 12.8ppm/℃
Cleavage Plane <100>
Optical Transmission >90%(200~400nm),>98%(500~1000nm)
Crystal Prefection No visible inclusions and micro cracking, X-Ray rocking curve available



Advantage:

1.Very small dielectric constant

2.Loss in the microwave band

3.Available for large size

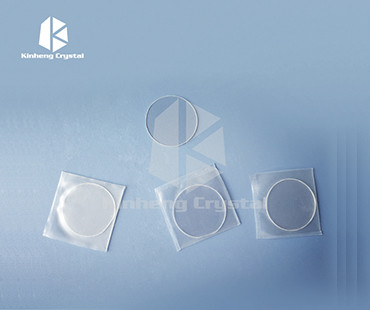

Product shots:



Very Small Dielectric Constant Magnesium Oxide Substrate MgO Substrate 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
