PWO Scintillation Crystal PbWO4 Scintillator Non-Hygroscopic Fast Decay Time 6ns / 30ns

Description
Advantage: Fast Decay Time Material: Scintillator Crystal
Name: PWO Radiation Length(cm): 0.92
HS Code: 9001909000 Crystal Growth Method: Bridgman
Size: Customized Available Color: Transparent
High Light:

scintillation crystal 6ns

,

PWO scintillator crystal

,

scintillation crystal 30ns

Non-hygroscopic fast decay time 6/30ns PWO scintillator crystal PbWO4 scintillation



PWO scintillator crystals have the following issues which should be noted:



  • Relatively low light output
  • Are intrinsically radioactive making it unacceptable for some applications
  • Are susceptible to radiation damage, starting with doses between 1 and 10 Gray (10² - 10³ rad). Reversible with time or annealing.



Properties:

Density(g/cm3) 8.28
Atomic Number (Effective) 73
Decay Time(ns) 6/30
Wavelength (Max. Emission) 430,520
Photoelectron Yield % of NaI(Tl) 1
Melting Point(ºK) 1125
Hardness (Mho) 4
Refractive Index 2.16
Hygroscopic No
Thermal Expansion Coeff.( C⁻¹) 10.0 x 10‾⁶



Advantage:

High density, high Z

High stopping power

Fast decay time



Application:

Positron Emission Tomography (PET)

High energy, nuclear, space and medical physics

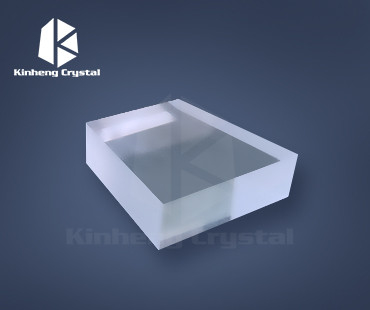

Product shots:
