One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal

One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal
One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal

Large Image :  One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal

Description
Name: BaF2 Crystal Structure: Cubic
Lattice Constant(nm): 0.6196 Hardness(Mho): 3
Hygroscopic: Slightly Wavelength Range(nm): 170 - 460
Moliere Radius(cm): 3.117 Refractive Index: 1.49 (9@ 310nm)
High Light:

Cubic BaF2 Scintillator

,

3 Mho scintillation detector crystal

,

BaF2 Scintillator Crystal

One of fastest scintillators sub-nanosecond decay time BaF2 Scintillation Crystal



BaF2 scintillator crystals - issues to be aware of:



  • Slightly hygroscopic with long term exposure to moisture effective the quality of the surface
  • Very sensitive to thermal shock which can cause fracturing



Properties:

Transmission Range (μm) 0.15~12.5
Transmittance >90% (0.35-9um)
Refractivity(2.58μm) 1.4626
Radiation Length(cm) 2.06
Emission Peak (nm) 310(slow);220(fast)
Decay Time(ns) 620(slow);0.6(fast)
Light Output (Comparing NaI(Tl)) 20%(slow);4%(fast)
Cleavage Plane (111)
Density (g/cm3) 4.89
Melting Point (℃) 1280



Advantage:

One of the fastest scintillators

Produce optical emissions in the form of a ‘fast’ and ‘slow’ pulses

Good scintillation and optical properties



Application:

High energy physics

Nuclear physics

Nuclear medical instruments

Optical UV-IR window

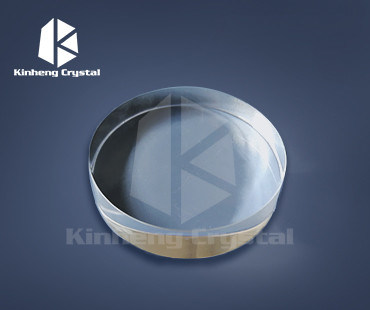

Product shots:



One Of Fastest Scintillation Sub-Nanosecond Decay Time BaF2 Scintillator Crystal 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
