Product Details:
|
Product Name: | GAGG Scintillator Crystal | Timing Resolution: | 169ps |
---|---|---|---|
Center Wavelength: | 530 | Crystal System: | Cubic |
Density(g/cm3): | 6.6 | Hygroscopic: | No |
Advantage: | High Light Output,low Afterglow,good Stopping Power | Cleavage: | None |
Reflector: | BaSO4 | ||
High Light: | 169ps GAGG Scintillator,GAGG Crystal High Light Output,GAGG Scintillator Low Afterglow |
High light output low afterglow fast decay time GAGG scintillation Crystal
GAGG:Ce has highest light output in all series of oxide crystal. Besides, it has good energy resolution,non-self-radiation, non- hygroscopic, fast decay time and low afterglow.Max dimension: Dia3"x3", Dia60x200mm length
Properties:
Type | GAGG-HL | GAGG Balance | GAGG-FD |
Crystal System | Cubic | Cubic | Cubic |
Density(g/cm3) | 6.6 | 6.6 | 6.6 |
Light Yield (photons/Kev) | 60 | 50 | 30 |
Decay Time(ns) | ≤150 | ≤90 | ≤48 |
Center Wavelength | 530 | 530 | 530 |
Advantage:
1. Good stopping power
2. High brightness
3. Low afterglow
4. Fast decay time
Application:
Gamma camera
PET, PEM, SPECT, CT
X-ray & Gamma ray detection
High energy container inspection

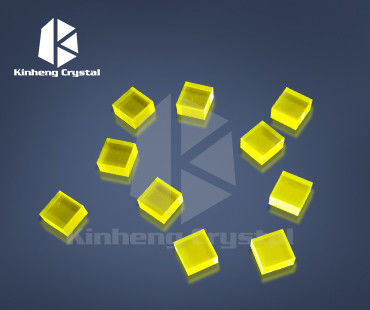

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2. Q: Where is your main market?
A: Europe, America, Asia.
Contact Person: Ivan. wang
Tel: 18964119345
