CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector

CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector
CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector

Large Image :  CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector

Description
Temperature: -30-70°C Encapsulation: Aluminum Housing
Product Name: CLYC Scintillator Detector Material: CLYC Crystal,CLYC Scintillator
HS Code: 903090850 The Fastest Decay Time: 1ns
Hygroscopic: Yes Size: 1"x1",1.5"x1.5"
High Light:

CLYC Scintillator Detector

,

neutron detector

,

Kinheng Scintillator Detector

Excellent energy resolution neutron detector CLYC Scintillator Detector​



CLYC is a crystalline scintillation material that emits photons when struck by ionizing radiation. CLYC has the ability to detect and discriminate both gamma-rays and neutrons. Additionally, it is capable of high resolution gamma-ray spectroscopy, which provides very accurate identification of the radiation source.CLYC is often coupled to a Photomultiplier Tube (PMT) or a Solid State Photodetector (SiPM) to analyze the emitted signal and assembled into a finished instrument. Aimed at first responders, law enforcement, and other national security agencies these PRDs and SPRDs are very sensitive, portable instruments that detect both gamma-rays and neutrons. This enables first responders to quickly locate and identify a wide range of radioactive materials utilizing a single device.



Properties:



Density(g/cm3) 3.31
Wavelength of emission max(nm) 390
Energy resolution (Cs137) 5%
Decay time(ns) 1,50,1000
Light yield photons 1MeV γ ray 20000
Light yield photons 1MeV neutron ray 70000
Pulse shapeγ-1n discrimination Yes
Hygroscopic

Yes





















Advantage:

High light outputs

Fast decay time

Good energy resolution



Application:

Environmental monitoring

Oil well detection

Nuclear imaging

Safety inspection

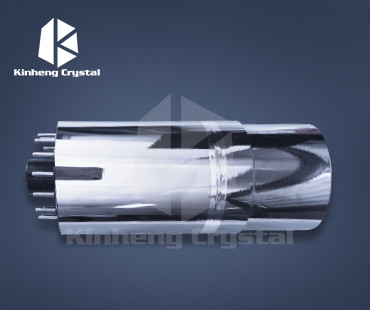

Product shots:

CLYC Scintillator Detector Excellent Energy Resolution Neutron Detector 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
