Product Details:
|
| Temperature: | -30-70°C | Reflector: | MgO |
|---|---|---|---|
| Encapsulation: | Aluminum Housing | Configuration: | SiPM |
| Product Name: | NaI(Tl) SIPM Scintillator Detector | Material: | NaI(Tl) Scintillator Crystal |
| Resolution(Cs137)3): | ≤8.5% | Size: | 1"x1";1.5"x1.5";2"x2" |
| High Light: | NaI(Tl) Scintillator Detector,KHD-3 SIPM scintillation detector,Scintillator Detector DMCA |
||
Compact constructure with DMCA NaI(Tl) SIPM optical module Scintillator detector
Introduction
KHD-3 SIPM scintillation detector is generation γ-ray measurement device. Combined with lead chamber and Multi-channel Analyzer(MCA) to form Energy Spectrometer, widely used in weak radioactivity analysis field, such as building materials, food, geology etc.
KHD-3 SIPM scintillation detector’s advantage including compact structure, easy operation, low background, excellent energy resolution, stable output, high reliability, durability and high detection efficiency.
NaI-Detectors with SiPM and SiPM-1000 MCA are very low cost radiation detectors.
Features:
Measure radiation with scientific accuracy.
Built-in functions: Histogram, count rates, search, background subtraction and tracking, alarm, portal monitor, two-channel logger for passing vehicles.
Built-in gain-stabilization;
No dangerous high voltage.
Embedded 32-bit ARM processor for control and data analysis. C-code is secure and can not be read back.
C-code additions on customer demand.
Control and display software for Windows, Linux, Raspberry Pi.
Properties:
| Specification | Range | Unit |
| Scintillator Effective Size | φ50 X 50 | mm |
| Input Voltage | +12V,-12V | V |
| Input Current | ≤10 | mA |
| Output Polarity | Positive Polarity | - |
| Output Amplitude (MAX)1) | 6 | V |
| Output Amplitude(TYPE)2) | 1 | V |
| Resolution(Cs137)3) | ≤8.5 | % |
| <span color:black;background:white;"="" style="font-size: 1pt;"> Background Count Rate(30kev~3Mkev) | ≤200 | min-1 |
| Work Temperature | 0℃ ~ +40 | ℃ |
| Storage Temperature | -20 ~ 55 | ℃ |
| Humidity | ≤90 | % |
Notes:
1.Detector signal exceeds this value, a truncation will occur.
2. The amplitude of signal is usually less than 1V in spectrum analysis.
3.The value is measured when detector preheated for 10 minutes, the counting rate within 1000, total counting number is less than 105 in Cs137 peak. The resolution is related to the number of coupled SIPM, the more SIPM quantities, the better energy resolution.
Working Principle
Interface
| Interface | Wiring | Wiring Definition |
| Waterproof Self-locking Plug | Coaxial Cable |
1:+12V 2:GND 3:-12V 4:Offset Voltage 5: Signal 6: Temperature Interface |

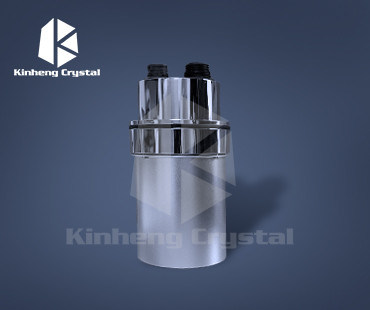

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
