Product Details:
|
| Temperature: | -30-70°C | Encapsulation: | Aluminum Housing |
|---|---|---|---|
| Product Name: | CeBr3 Scintillator Detector | Scintillator Effective Size: | φ50 X 50 |
| Input Voltage: | 11.5 ~12.5V | Input Current: | ≤60 |
| Resolution(Cs137)3): | ≤4.5% | Humidity: | ≤90% |
| High Light: | CeBr3 Scintillation Detector,Kinheng cerium bromide scintillator,ISO Scintillation Detector |
||
Fast decay time good time resolution CeBr3 Scintillator Detector
This Cerium Bromide (CeBr3) scintillator detector will work with any standard PMT voltage divider socket, dimension 1"x1",1.5"x1.5" available.
Cerium bromide crystals have a high density and superior resolution, typically better than 4.5% at 662 keV., which makes them excellent for research where low level detection is required.
CeBr3 does have a small amount of intrinsic activity (self count) however this is often compensated for by subtracting background counts in the software.
Properties
| Specification | Range | Unit |
| Scintillator Effective Size | φ50 X 50 | mm |
| Input Voltage | 11.5 ~12.5 | V |
| Input Current | ≤60 | mA |
| Output Polarity | Positive Polarity | - |
| Output Amplitude (MAX)1) | 9 | V |
| Output Amplitude(TYPE)2) | 1 | V |
| Resolution(Cs137)3) | ≤4.5 | % |
| <span color:black;background:white;"="" style="font-size: 1pt;"> Background Count Rate(30kev~3Mkev) | ≤250 | min-1 |
| Work Temperature | 0℃ ~ +40 | ℃ |
| Storage Temperature | -20 ~ 55 | ℃ |
| Humidity | ≤90 | % |
Notes:
1.Detector signal exceeds this value, a truncation will occur.
2.The amplitude of signal is usually less than 1V in spectrum analysis.
3.The value is measured when detector preheated for 10 minutes, the counting rate within 1000, total counting number is less than 105 in Cs137 peak.
Advantage:
1.Low Gamma background
2.Excellent energy resolution
3.High light yeild
4.Fast decay time
5.Good time resolution

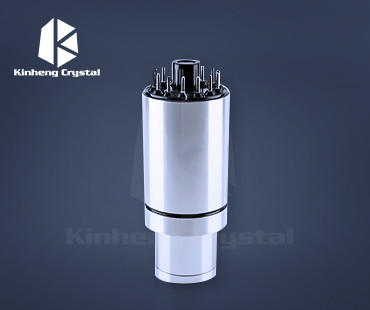

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
