GAGG Scintillator Array SPECT Imaging High Energy Container Inspection

Description
Material: GAGG Scintillator Array: 1D, 2D
Application: Medical Imaging ,high Energy Container Inspection Reflector: BaSO4
Warranty: One Year Product Name: GAGG Scintillator Array
Chemical Formula: Gd₃Al₂Ga₃O₁₂ HS Code: 9001909000
High Light:

GAGG Scintillator Array

,

GAGG Scintillation Array

,

Scintillator Array SPECT Imaging

SPECT Imaging high energy container inspection GAGG scintillator array



GAGG(Ce) - Gadolinium Aluminium Gallium Garnet (Gd₃Al₂Ga₃O₁₂) doped with Ce, is a newly developed scintillator materials. GAGG(Ce) is one of the brightest scintillators with an emission peak at 520nm, which has a well matching to Photo Diodes (PD) and Silicon Photon Multiplier (SiPM). GAGG(Ce) has good radiation hardness, and is physically rugged and well fit for a broad range of applications.

GAGG:Ce has highest light output in all series of oxide crystal. Besides, it has good energy resolution,non-self-radiation, non- hygroscopic, fast decay time and low afterglow.



Why Choose Kinheng:

1.Minimal pixel dimension available

2.Reduced optical crosstalk

3.Good uniformity between pixel to pixel/ Array to array

4.TiO2/BaSO4/ESR/E60 reflectors available

5.Pixel Gap: 0.08, 0.1, 0.2, 0.3mm

6.Performance testing available



Materials' Properties Comparison:



Item name CsI(Tl) GAGG CdWO4 LYSO LSO BGO GOS(Pr/Tb) Ceramic
Density(g/cm3) 4.51 6.6 7.9 7.15 7.3~7.4 7.13 7.34
Hygroscopic Slightly No No No No No No
Relative light output(% of NaI(Tl)) (for γ-rays) 45 158(HL)/ 132(BL)/79(FD) 32 65-75 75 15-20 71/ 118
Decay time(ns) 1000 150(HL)/ 90(BL)/48(FD) 14000 38-42 40 300 3000/ 600000
Afterglow@30ms 0.6-0.8% 0.1-0.2% 0.1-0.2% N/A N/A 0.1-0.2% 0.1-0.2%
Array type Linear and 2D Linear and 2D Linear and 2D 2D 2D 2D Linear and 2D



Mechanical design for assembling:



Based on the end use of assembled array, there are many kinds of mechanic design from Kinheng to meet the medical and security inspection industry.

1D Liner array are mainly used for Security inspection industy, such as Bagger scanner, Aviation scanner, 3D scanner and NDT. Material Including CsI(Tl), GOS:Tb/Pr Film, GAGG:Ce, CdWO4 scintillator etc. They are typically coupled with Silicon Photodiode line array for read out.

2D array are normally used for imaging, including Medical(SPECT, PET, PET-CT, ToF-PET), SEM, Gamma camera. These 2D array are typically coupled with SIPM array, PMT array for read out. Kinheng provide 2D array including LYSO, CsI(Tl), LSO, GAGG, YSO, CsI(Na), BGO scintillator etc.

Below is kinheng’s typically design drawing for 1D And 2D array for industry.

GAGG Scintillator Array SPECT Imaging High Energy Container Inspection 0

                                                              (Kinheng linear array)



GAGG Scintillator Array SPECT Imaging High Energy Container Inspection 1

                                                               (Kinheng 2D array)



Typical Pixel size& numbers:



Material Typical pixel size Typical numbers
Linear 2D Linear 2D
CsI(Tl) 1.275x2.7 1x1mm 1x16 19x19
GAGG 1.275x2.7 0.5x0.5mm 1X16 8x8
CdWO4 1.275x2.7 3x3mm 1x16 8x8
LYSO/LSO/YSO N/A 1X1mm N/A 25x25
BGO N/A 1x1mm N/A 13X13
GOS(Tb/Pr) ceramic 1.275X2.7 1X1mm 1X16 19X19



Minimal size of Pixel:



Material Minimal pixel size
Linear 2D
CsI(Tl) 0.4mm pitch 0.5mm pitch
GAGG 0.4mm pitch 0.2mm pitch
CdWO4 0.4mm pitch 1mm pitch
LYSO/LSO/YSO N/A 0.2mm pitch
BGO N/A 0.2mm pitch
GOS(Tb/Pr) ceramic 0.4mm pitch 1mm pitch



Scintillation Array Reflector and Adhesive parameter :



Reflector Thickness of Reflector+Adhesive
Linear 2D
TiO2 0.1-1mm 0.1—1mm
BaSO4 0.1mm 0.1-0.5mm
ESR N/A 0.08mm
E60 N/A 0.075mm



Application:

Item name CsI(Tl) GAGG CdWO4 LYSO LSO BGO GOS(Tb/Pr) Ceramic
PET, ToF-PET   Yes   Yes Yes
SPECT Yes Yes
CT       Yes Yes Yes Yes
NDT Yes Yes Yes
Bagger scanner Yes Yes Yes
Container Checking Yes Yes Yes
Gamma camera Yes Yes



Product shots:

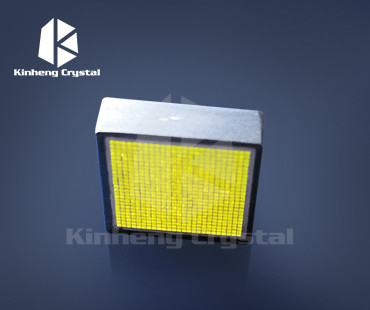

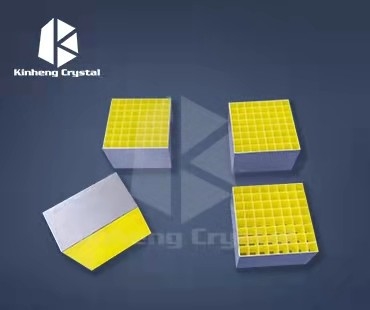

GAGG Scintillator Array SPECT Imaging High Energy Container Inspection 2GAGG Scintillator Array SPECT Imaging High Energy Container Inspection 3GAGG Scintillator Array SPECT Imaging High Energy Container Inspection 4

GAGG Scintillator Array SPECT Imaging High Energy Container Inspection 5



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
