Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Model Number: 20x20x20mm
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

High energy physics Positron Emission Tomography (PET) PWO Scintillator crystal

Description
Appilication: High Energy Physics,PET Density(g/cm3): 8.28
Atomic Number (Effective): 73 Decay Time(ns): 6-30
Wavelength (Max. Emission): 430,520 Photoelectron Yield % Of NaI(Tl): 1
Melting Point(ºK): 1125 Thermal Expansion Coeff.( C⁻¹): 10.0 X 10‾⁶

High energy physics Positron Emission Tomography (PET) PWO scintillation crystal



Lead Tungstate - PWO (or PbWO₄) is a highly effective gamma-ray absorber as a result of its high density and high Z. It is also very fast with a very short Radiation Length and Moliere Radius.



Properties:

Density(g/cm3) 8.28
Atomic Number (Effective) 73
Decay Time(ns) 6,30
Wavelength (Max. Emission) 430,520
Photoelectron Yield % of NaI(Tl) 1
Melting Point(ºK) 1125
Hardness (Mho) 4
Refractive Index 2.16
Hygroscopic No
Thermal Expansion Coeff.( C⁻¹) 10.0 x 10‾⁶



Advantage:

High density, high Z

High stopping power

Fast decay time



Application:

Positron Emission Tomography (PET)

High energy, nuclear, space and medical physics

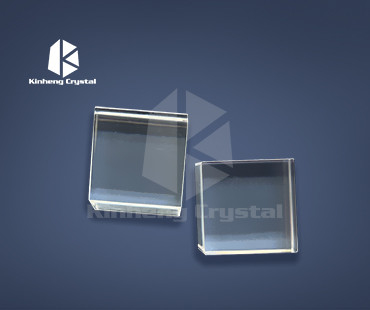

Product shots:

 High energy physics Positron Emission Tomography (PET) PWO Scintillator crystal 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
