Nuclear Medical Instruments BaF2 Scintillation Crystal High Energy Physics

Nuclear Medical Instruments BaF2 Scintillation Crystal High Energy Physics
Nuclear Medical Instruments BaF2 Scintillation Crystal High Energy Physics

Large Image :  Nuclear Medical Instruments BaF2 Scintillation Crystal High Energy Physics

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Nuclear Medical Instruments BaF2 Scintillation Crystal High Energy Physics

Description
Transmission Range (μm): 0.15~12.5 Transmittance: >90% (0.35-9um)
Refractivity(2.58μm): 1.4626 Radiation Length(cm): 2.06
Emission Peak (nm): 310(slow);220(fast) Decay Time(ns): 620(slow);0.6(fast)
Light Output (Comparing NaI(Tl)): 20%(slow);4%(fast) Cleavage Plane: (111)
High Light:

4.89g/cm3 Scintillation Crystal

,

BaF2 Scintillator

,

BaF2 Scintillation Crystal

Nuclear medical instruments high energy physics BaF2 Scintillation Crystal



BaF2 scintillator has excellent scintillation properties and optical transmission over wide spectrum range. It’s regarded as the fastest scintillators so far. The fast component can be used to measure time precisely and obtain good time resolution, it has been pursued as a promising scintillator in the research of positron annihilation. It shows excellent radiation hardness up to 106 rad or even more.



Properties:

Transmission Range (μm) 0.15~12.5
Transmittance >90% (0.35-9um)
Refractivity(2.58μm) 1.4626
Radiation Length(cm) 2.06
Emission Peak (nm) 310(slow);220(fast)
Decay Time(ns) 620(slow);0.6(fast)
Light Output (Comparing NaI(Tl)) 20%(slow);4%(fast)
Cleavage Plane (111)
Density (g/cm3) 4.89
Melting Point (℃) 1280



Advantage:

One of fastest scintillators

Produce optical emissions in the form of a ‘fast’ and ‘slow’ pulses

Good scintillation and optical properties



Application:

High energy physics

Nuclear physics

Nuclear medical instruments

Optical UV-IR window



Product shots:

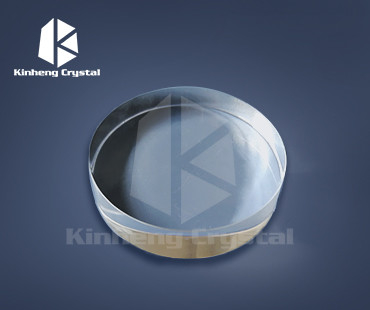

Nuclear Medical Instruments BaF2 Scintillation Crystal High Energy Physics 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
