Product Details:
|
| Encapsulation Housing: | Stainless Steel /Titanium Alloy Housing | Application Temperature: | 150°C, 175°C，200°C |
|---|---|---|---|
| Reflector: | PTFE | Optical Window: | Sapphire |
| Encapsulation Methold: | Welding | Anti-Vibration: | Yes |
| Anti-shocking: | Yes | Anti-high Temperature: | Yes |
| Material: | Forged Crystal NaI | ||
| High Light: | nai tl scintillator crystal,3.67g/cm3 scintillation detector crystal,Sapphire nai tl scintillator crystal |
||
175°C oil logging MWD Gamma probe forged crystal NaI(Tl) scintillation crystal
NaI(Tl) is the most widely used scintillation material because of its Performance/price rate. NaI(TI) is used in nuclear medicine, environmental measurements, geophysics, medium-energy physics, Radiation detection etc. It has high light output, convenient emission range (in coincidence with maximum efficiency region of photomultiplier (PMT) with bialkali photocatodes), large-size growth and lowest price rate compared to other scintillation materials. As it's easy to be hygroscopic, NaI(TI) must be sealed in Al housing encapsulation. Available welding SS housing encapsulation to make the crystals to resist the high temperature application.
Customized sharp of NaI(Tl) scintillator: End-Well, Cubic sharp, side open well. Cylinder.
Properties:
| Density(g/cm3) | 3.67 |
| Melting Point (K) | 924 |
| Thermal expansion coefficient (K-1) | 47.4 x 10-6 |
| Cleavage Plane | (100) |
| Hardness (Mho) | 2 |
| Hygroscopic | Yes |
| Wavelength of Emission Maximum (nm) | 415 |
| Refractive Index at Emission Maximum | 1.85 |
| Primary Decay Time(ns) | 250 |
| Light Yield (photons/keV) | 38 |
| Operation Temperature Range | -50℃ to 175℃ |
| Gradient | 3 degree per minute max |
| Vibration | Random 20g, 5-500Hz 30 minutes duration per axis total |
| Shocking | 500g/1ms-3 shocks per axis,1 axis total |
Advantage:
1.Good performance for shocking/virbration
2.Anti-high temperature
3.Forged crystal with good mechanic strength
4.Diameter 15mm -Dia4" available
Application:
MWD
Oil/Welllogging
Gamma probe

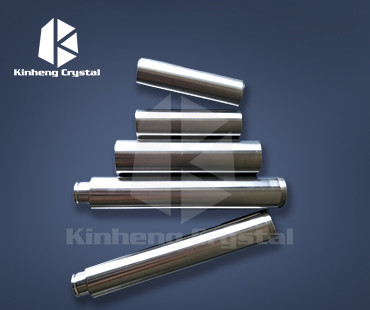

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
